Product details of the polystyrene cutting machine for sale
Product Introduction
Minglong polystyrene cutting machine for sale is of a functional design without compromising on the overall appearance. The product passes the verification of international quality inspection standards. In Hangzhou Minglong Technology Co.,Ltd, orders shall be shipped as promised.
Characteristics

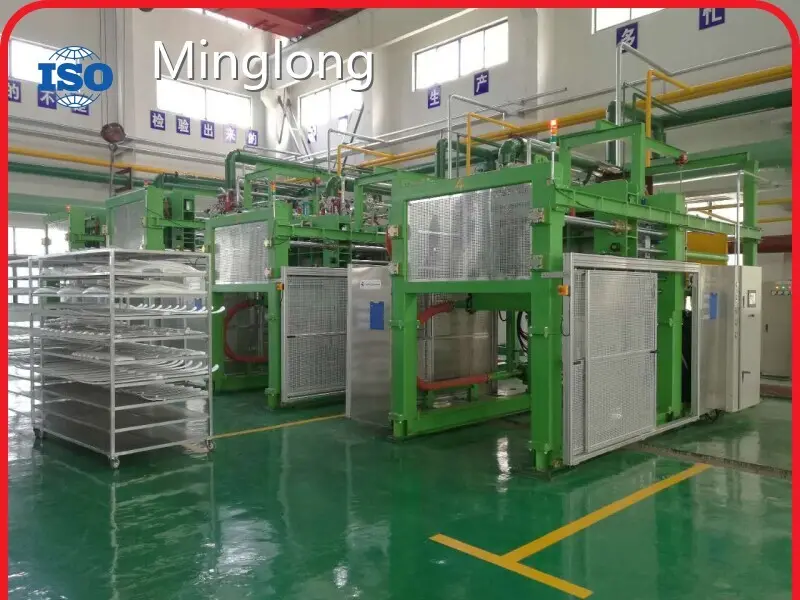

EPP foam moulding machine main features:
1. Feeding methods: Feeding by pulse; Feeding by negative pressure; Feeding by back pressure;Feeding assisted by currents of wind.
2. Smart proportional valves of high precision are in control of such processing as feeding, heating and mould unloading.
3. Intensive hydraulic power system offers the integration of powering and pressurization, thus securing convenience for maintenance;
4. Separated positioning model frame, easy for disassembly of die.
5. Install plug-in water tank.
6. Inching hydro-cylinder mode locking.
7. Self-equipped heat-insulation steam chest template.
8. Precise joint retention accuracy, with the margin of range lesser than 0.5mm.
9. Frames of high rigidity, promise and secure enduring production in responsive to EPP industry.
10. Various devices for safety.
Technical Data
ITEM | Unit | EPP-813 | EPP-1214 | EPP-1318 | EPP-1320 | |
Mould dimension | mm | 950x1450 | 1350x1550 | 1450x1950 | 1450x2150 | |
Max product size | mm | 800x1300 | 1200x1400 | 1300x1800 | 1300x2000 | |
Product max height | mm | 400 | 400 | 400 | 400 | |
Move distance | Max | mm | 1700 | 1700 | 1700 | 1700 |
Min | mm | 220 | 220 | 220 | 220 | |
Guide pillar | Size | mm | 90x2300 | 90x2300 | 100x2300 | 100x2300 |
Quantity | pcs | 4 | 4 | 4 | 4 | |
Guide rod | Diameter | mm | 45x2900 | 45x2900 | 45x2900 | 45x2900 |
Quantity | pcs | 4 | 4 | 4 | 4 | |
Oil cylinder | Main cylinder | mm | 100x70x1500 | 100x90x1500 | ||
Quantity | pcs | 2 | 2 | 2 | 2 | |
Lock cylinder | mm | 125x75x1500 | 125x90x1500 | |||
Quantity | pcs | 4 | 4 | 4 | 4 | |
Lock strength | t | 65 | 75 | 85 | 85 | |
Oil drum | Volume | L | 150x2 | 150x2 | 200x2 | 200x2 |
Pipe quantity | pcs | 22x2 | 22x2 | 22x2 | 22x2 | |
Steam | Entry | mm | DN100 | DN100 | DN100 | DN125 |
Hopper qty | mm | DN40x3 | DN40x3 | DN40x4 | DN40x4 | |
Pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 | |
Cooling water | Entry | mm | DN100 | DN100 | DN100 | DN100 |
Hopper qty | mm | DN25x3 | DN25x3 | DN25x4 | DN25x4 | |
Pressure | Mpa | 0.4 | 0.4 | 0.4 | 0.4 | |
Air | High inlet | mm | DN50 | DN65 | DN65 | DN65 |
Low inlet | mm | DN20 | DN20 | DN20 | DN20 | |
Pressure | Mpa | 0.6~0.7 | 0.6~0.7 | 0.6~0.7 | 0.6~0.7 | |
Drainage | Main outlet | mm | DN325 | DN325 | DN325 | DN325 |
Hopper qty | mm | DN40x3 | DN40x3 | DN40x4 | DN40x4 | |
Motor power | Hydraulic | kw | 7.5 | 7.5 | 7.5 | 7.5 |
Blower fan | kw | 1.5 | 2.2 | 2.2 | 2.2 | |
Vacuum pump | kw | 5.5 | 5.5 | 7.5 | 7.5 | |
Oil tank capacity | Rated capacity | L | 305 | 305 | 305 | 305 |
Auxiliary fuel tank capacity | L | 120 | 120 | 150 | 150 | |
Cycle Time | s/cycle | 90-150 | 90-150 | 100-180 | 100-180 | |
Overall Dimension | meter | 6.5x2.9x4.8 | 6.5x3.3x4.9 | 6.5x3.4x5.3 | 6.5x3.4x5.5 | |
Machine Weight | kg | 9000 | 9500 | 11000 | 13000 |
Advantages
Equipment features:
• High-precision machine body structure
• Reliable and durable hydraulic system
• Pressure-maintaining double barrel design
• Stable heating system
• Frame heat treatment, three-layer surface treatment
• Double-layer epoxy zinc-rich primer.
1. Fully automatic working by computer control system with PLC and color touch screen.
2. Fast working process and short cycle time, Saving energy and high efficiency working capacity.
3. Germany and Japan proportional valves, meters, sensors, reduce valve, Europe pipe system and Schneider electronics to control steady steam and air pressure for steady working and making high quality products.
4. The machine has fast installing mold and auto locking mold system, and with foundation legs and electric crane, feeding oil system, single vacuum and condenser system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
Detail Of Key Parts
Production Process
1: Raw material EPP (foamed polypropylene): purchased directly from the raw material manufacturer.
2: Pre-pressing: According to the requirements of the product ratio and gram weight, the purchased raw materials are pumped into the pre-pressing tank with a fan and injected with air for pre-pressing. The auxiliary equipment required for pre-pressing is the pre-pressing tank and the air compressor.
3: Molding: The pre-pressed raw materials are used by the molding machine and the mold to produce products of various specifications as required. The production process is that the EPP material in the pre-pressing barrel on the EPP automatic molding machine is injected into the mold with a material gun, and the raw material is heated and molded in the mold by steam generated by the boiler. The raw material is cooled and shaped by cooling water and vacuum system to form a fixed EPP product. The required equipment is: boiler, air compressor, cooling water, EPP molding machine and mold, material gun, vacuum system.
4: Drying: EPP products need to be dried in the drying room, and the temperature of the drying room should be controlled between 75-80 degrees.
5: Packing and warehousing: The complete products are packaged and transported into the warehouse manually.
Function And Application
It used for running EPP molds to produce all kinds of packaging and insulation EPP products such as EPP seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, ICF constructions, cars and Appliances inner parts and so on.
Company Advantage
• Minglong's EPS machine, EPP machine are only sold well throughout the country, but also exported to Europe, America, Southeast Asia, the Middle East, and other countries and regions. And the market share continues to grow.
• Having explored and innovated for years, Minglong is an excellent enterprise with great influence in the industry.
• Minglong has a group of production experts with rich experience and advanced technology. They provide strong technical support for the production.
• Minglong always puts customers and services in the first place. We constantly improve service while paying attention to product quality. Our goal is to provide high-quality products as well as thoughtful and professional services.
There are many kinds of fabrics, colors and styles of textile products in the market. Minglong provides custom service. If you have any needs, please contact us.
