Product details of the eps cutting equipment
Product Introduction
Minglong eps cutting equipment is manufactured by adopting advanced technology and production equipment. Through a thorough quality inspection, the product is guaranteed to be defect-free. By years of development, the product has successfully gained trust from clients and tends to be more applied in the global market.
Characteristics

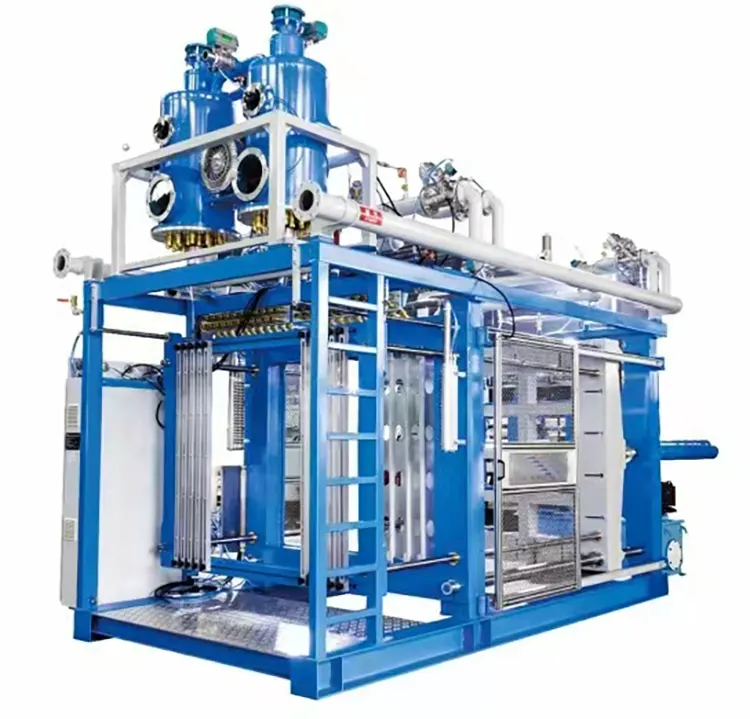

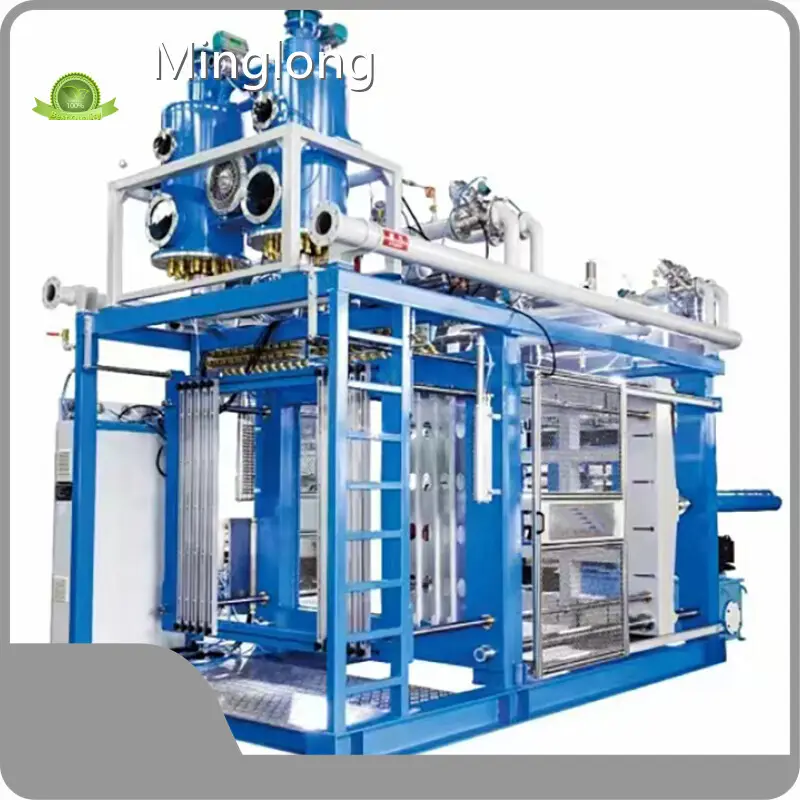

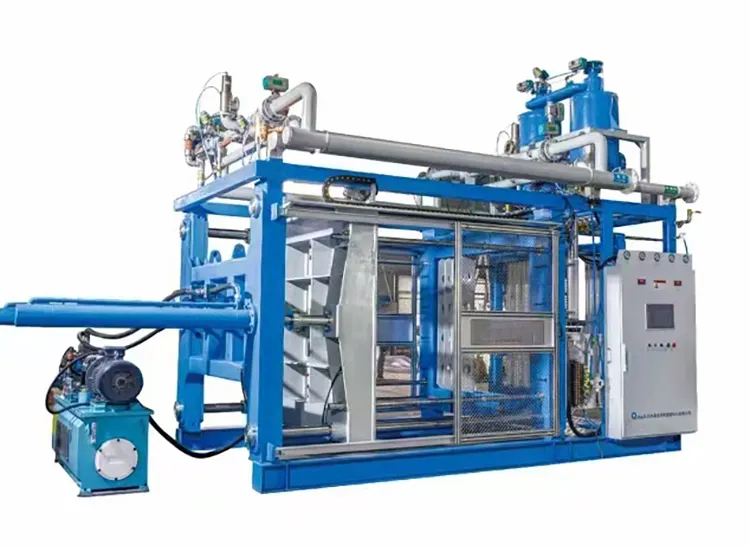

1. This EPS fully auto shape moulding machine use CNC blanking technology for all steel blanking, and most of them Galvanizing treatment is adopted for parts after CNC processing to improve the surface of parts Quality and longer durability.
2. Autonics encoder from South Korea is used for the running stroke of the equipment. In addition, the encoder bracket adopts a new design that can adjust the balance by itself. The rack is fixed. Compared with the traditional method, the rack is safer and more reliable when it is not moving, and the stroke control data is more accurate.
3. All welding parts are subject to electric furnace stress relief annealing treatment, and all welding parts and templates are subject to CNC machining technology, ensuring the processing accuracy of structural parts and concentricity during operation, which greatly improves the long-term stability of equipment operation.
4. The demoulding structure adopts the latest design of movable ejector fixed support, which is more reasonable and conve-nient compared with the traditional one. In particular, the maintenance problems caused by the falling off of the material pipe can be quickly solved, which improves the work efficiency and safety
performance.
5. The guide posts are all chrome plated with 45 # steel, and the guide sleeves for mold shifting are all formed by CNC at one time to ensure the installation accuracy of the guide posts. The oil injection device is designed and the wear-resistant copper sleeves that can be easily replaced are embedded to avoid the pain point that the internal wear-resistant parts cannot be replaced after the equipment has been running for a long time.
Technical Data
ITEM | Unit | FAV1400 | FAV1750 | FAV2000 | |
Mould Dimension | mm | 1400*1250 | 1750*1450 | 2000*1650 | |
Max product | mm | 1250*1100*420 | 1600*1300*420 | 1850*1500*420 | |
Stroke | mm | 150~1500 | 150~1500 | 150~1500 | |
Steam | Entry | mm | 89/108 | 108 | 125 |
Consumption | kg/cycle | 6~9 | 6~11 | 8~13 | |
Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
Cooling water | Entry | mm | 89/108 | 108 | 125 |
Consumption | kg/cycle | 30~90 | 35~100 | 40~130 | |
Pressure | Mpa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | |
Compressed Air | Entry | mm | 50/76 | 76 | 76/89 |
Consumption | m3/cycle | 1.8 | 2 | 2.5 | |
Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
Vaccum Pump Capacity | m3/h | 230 | 290 | 290 | |
Cycle Time | s | 60-120 | 60-120 | 70-140 | |
Connected Load/Power | kw | 12.5 | 16.5 | 16.5 | |
Overall Dimension | mm | 5700*1920*3250 | 5700*2030*3450 | 5700*2240*3680 | |
Machine Weight | kg | 6500 | 7500 | 9500 |
Advantages
1. Fully automatic working by computer control system with PLC and color touch screen.
2.Fast working process and short cycle time, Saving energy and high efficiency working capacity.
3. Germany and Japan proportional valves, meters, sensors, reduce valve, Europe pipe system and Schneider electronics to control steady steam and air pressure for steady working and making high quality products.
4. The machine has fast installing mold and auto locking mold system, and with foundation legs and electric crane, feeding oil system, single vacuum and condenser system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
Detail Of Key Parts
Function And Application

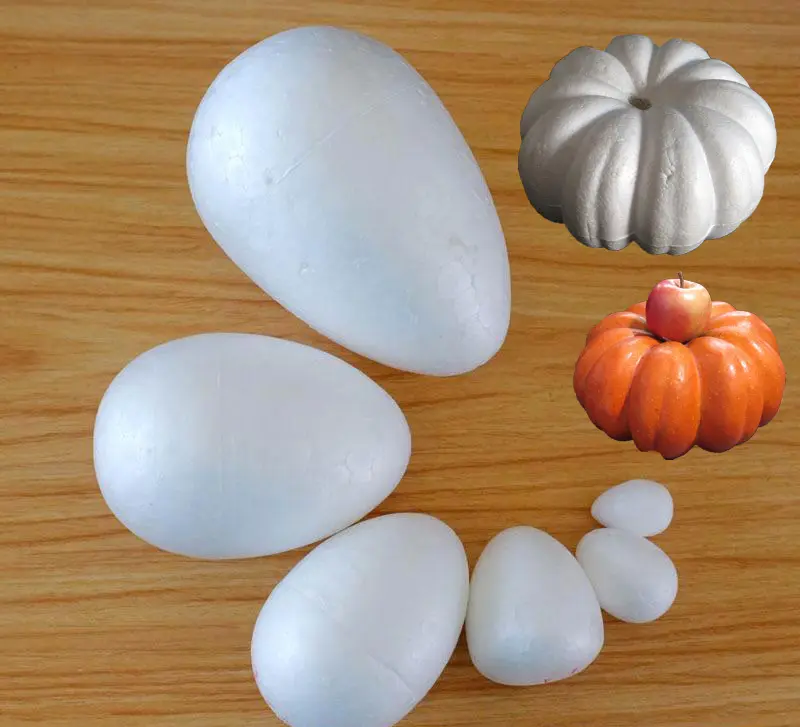

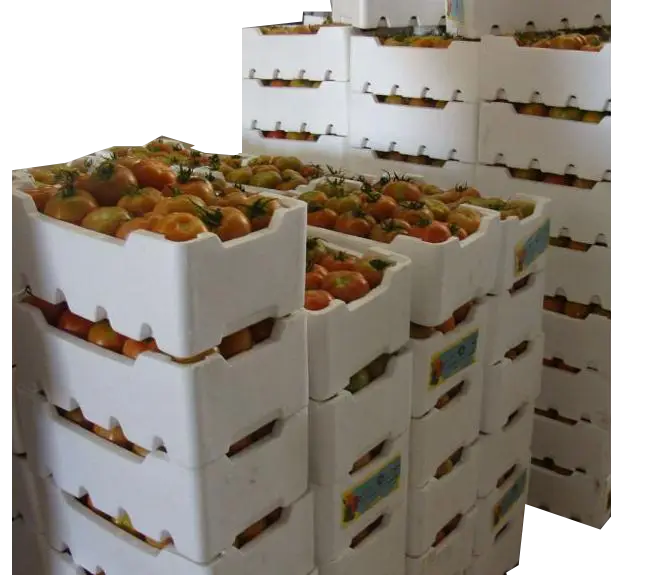

It used for running EPS molds to produce all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, ICF constructions, cars and Appliances inner parts and so on.
Company Advantage
• Our company was founded in and has had a long history of development for years. We have accumulated rich production experience.
• Minglong's location enjoys advantageous geographic condition with open and unimpeded traffic access. This creates convenience for us to deliver various EPS machine, EPP machine in time.
• In addition to major cities in the country, Minglong sells EPS machine, EPP machine to Southeast Asia, South America and some countries and regions.
• We have a professional marketing service team that provides consumers with quality products and services.
Over the years, we have been dedicated to the R&D and production of our products. If you want to know more about our products, please contact our online customer service staff.
