Product details of the eps cutting machine
Product Information
Minglong eps cutting machine is engineered using best available raw materials and by implementing latest technologies. Our professional team takes effective measures to ensure the quality of this product. Hangzhou Minglong Technology Co.,Ltd is leading company in the industry of eps cutting machine and famous for the high quality.

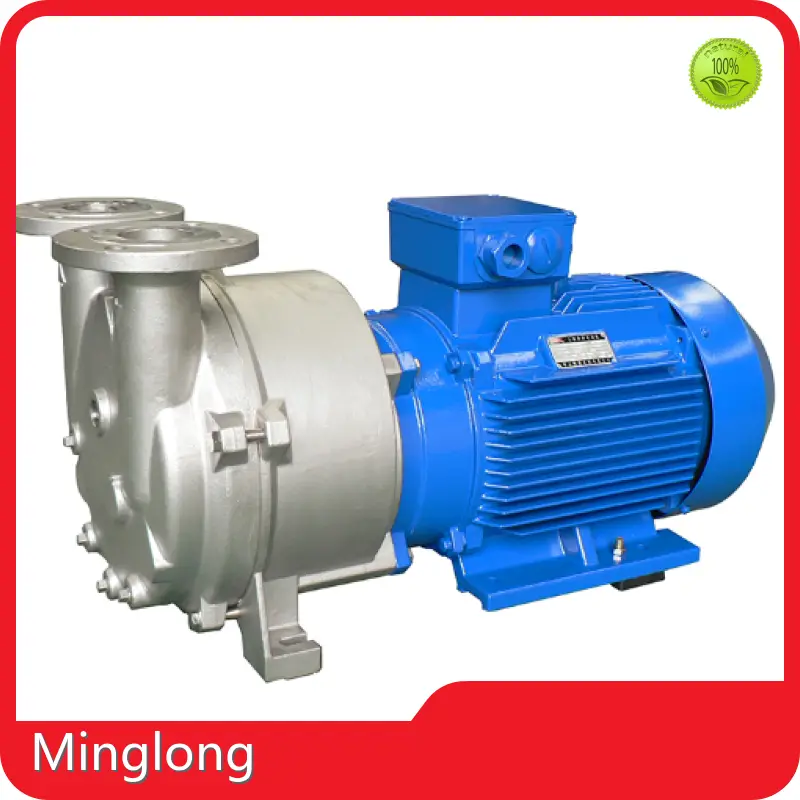

2BV5 Water Ring Vacuum Pump Introduction
1. Vacuum pump and motor form a compact structure. It only needs a level plane for installation.
According to water ring working principle, the impeller eccentricity mounting in the pump body, after the pump starts, the operating fluid in the pump body forms one ring with the pump body concentric, the impeller transmits power to liquid ring. Liquid ring pulsate periodically in the impeller blade, and sucks the gas from the inlet of port plate, after compression, then discharges from the air vent.
2. Application scope
2BV5 is the single stage liquid ring vacuum pump, is suitable for the continuous working, to form vacuum, suits for the evacuation of humid gas, nonflammable, non-corrosive atmosphere and atmospheric/steam mixture. According to the customer requirement, we could supply pump which is suitable for flammable, explosive and poisonous medium. Under such situation, should take the corresponding security measure.
3. Operating fluid usually is the water.
The stainless steel pump is suitable for corrosion condition.
2BV 5 vacuum pumps are applied in the low vacuum process;
Ultimate vacuum depends on saturated vapor pressure and operating liquid.
4. Ultimate vacuum is decided on the operating fluid type and temperature.
5. Parts and disassemble drawing:
002A- Pump body 048A- Clearance ring 068A-Screw plug
005A-Motor shaft 048B- Port plate 068B-sealing ring
006A-Parallel key 050A-Baffle 071A-Cavitation protection pipe
035A-Mechanical seal 051A-Valve plate 072A-Cavitation protection gasket 036A-Elastic ring 058A-Seal ring 078B-Screw plug 037A-Positioning pin
061A-End shield 080A-Seal gasket 047A-Impeller
Technical Specification
1. Gas or Steam of transportation：
| Model | （m3/h）Max. water inhalation | |
| Continuous operation Permission water inhalation | Instantaneous operation permissionwater inhalation | |
| 2BV5 161 | 3 | 6 |
| 2BV5 131 | 5 | 5 |
| 2BV5 121 | 3.5 | 4.5 |
| 2BV5 111 | 3 | 3.4 |
| 2BV5 110 | 2 | 2.5 |
2. Operating liquid (the data in the table is suitable for dry gas)：
| m3/hOperating liquid flow rate (25℃ water )Operating form | ||||||
| Cooling circulation connection | Operating liquid connection with separator | |||||
| Model | 33-200mbar | 200-500mbar | >500mbar | 33-200mbar | 200-500mbar | >500mbar |
| 2BV5 161 | 2.4 | 0.7 | 0.5 | 1.2 | 0.6 | 0.25 |
| 2BV5 131 | 1.8 | 0.45 | 0.4 | 0.9 | 0.4 | 0.18 |
| 2BV5 121 | 1.2 | 0.4 | 0.35 | 0.6 | 0.3 | 0.12 |
| 2BV5 111 | 1 | 0.4 | 0.35 | 0.5 | 0.3 | 0.12 |
| 2BV5 110 | 0.8 | 0.4 | 0.3 | 0.45 | 0.25 | 0.12 |
Function And Application
It used for supporting the machine such as the EPS/EPP(Polystyrene/Styrofoam) machine and central vacuum pipe system working. We manufacture vacuum pump and water pump with different power and capacity, we can specially design and make if the customer need different requirements.
