Product details of the eps panel machine
Product Specification
Certification: CE
Color: Blue, green or customized
Dimension(L*W*H): 4700x2030x3450mm
Application: EPS products for building construction, packaging and insulation products such as EPS foam blocks, sandwich panels, boxes of seafood/fruit/vegetable/ice, products for decoration, cold storage, ICF, cars and appliances inner parts
Product Introduction
Innovative design concept: the design concept of Minglong eps panel machine is carried out by a team of professionals who keep innovative ideas in mind and thus the innovation-oriented product is made. It is widely admitted that Minglong's increasing fame contributes to eps panel machine. A mature sales network promotes to the sales of eps panel machine.
Characteristics
1. This machine use for producing the shape forming packing products and some construction products, and it applies computer to control the whole process automatically, low voltage and high efficiency, fast forming, saving energy and big capacity.
2. It use advanced vacuum, condenser, and hydraulic system, different kind of heating, feeding and cooling. It can install the small and big mold.
3.There are four kinds of operating mode (Automatic, Semi-automatic, Middle-startup and Manual operation)with safe-guard protective device to ensure safe operation. Perfect failure self-diagnosing and overloading protection system, which keep machine safe and steady working.
4..Most of the main components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
5. This machine can choose mechanical ejection mold mode or hydraulic ejection mold mode.
6. This machine has the fast installing mold system.
Technical Data
| ITEM | Unit | FAV1400 | FAV1750 | FAV2000 | |
| Mould Dimension | mm | 1400*1250 | 1750*1450 | 2000*1650 | |
| Max product | mm | 1250*1100*420 | 1600*1300*420 | 1850*1500*420 | |
| Stroke | mm | 150~1500 | 150~1500 | 150~1500 | |
| Steam | Entry | mm | 89/108 | 108 | 125 |
| Consumption | kg/cycle | 6~9 | 6~11 | 8~13 | |
| Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
| Cooling water | Entry | mm | 89/108 | 108 | 125 |
| Consumption | kg/cycle | 30~90 | 35~100 | 40~130 | |
| Pressure | Mpa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | |
| Compressed Air | Entry | mm | 50/76 | 76 | 76/89 |
| Consumption | m3/cycle | 1.8 | 2 | 2.5 | |
| Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
| Vaccum Pump Capacity | m3/h | 230 | 290 | 290 | |
| Cycle Time | s | 60-120 | 60-120 | 70-140 | |
| Connected Load/Power | kw | 12.5 | 16.5 | 16.5 | |
| Overall Dimension | mm | 5700*1920*3250 | 5700*2030*3450 | 5700*2240*3680 | |
| Machine Weight | kg | 6500 | 7500 | 9500 | |
Advantages
1. Fully automatic working by computer control system with PLC and color touch screen.
2.Fast working process and short cycle time, Saving energy and high efficiency working capacity.
3. Germany and Japan proportional valves, meters, sensors, reduce valve, Europe pipe system and Schneider electronics to control steady steam and air pressure for steady working and making high quality products.
4. The machine has fast installing mold and auto locking mold system, and with foundation legs and electric crane, feeding oil system, single vacuum and condenser system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.

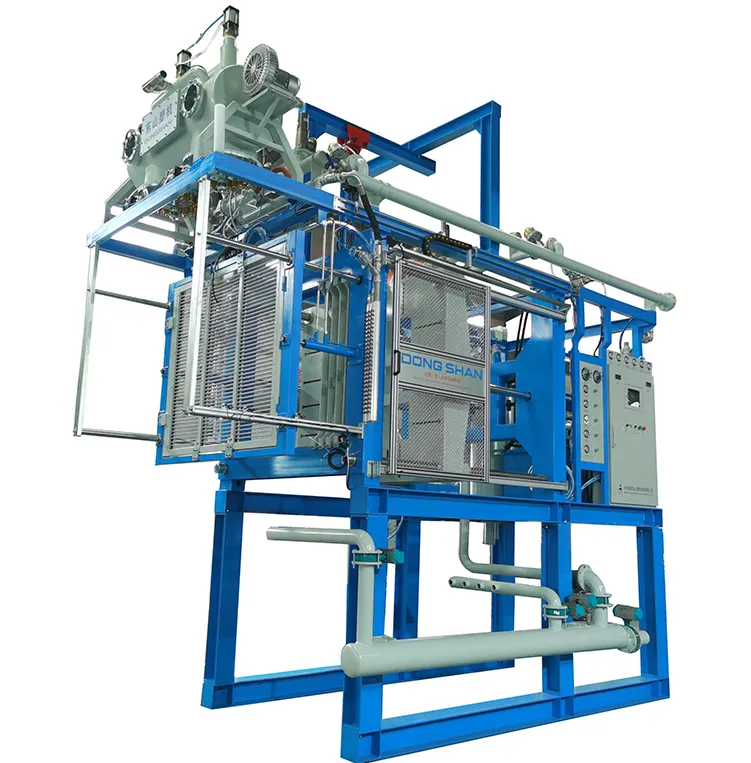

Detail Of Key Parts
Function And Application

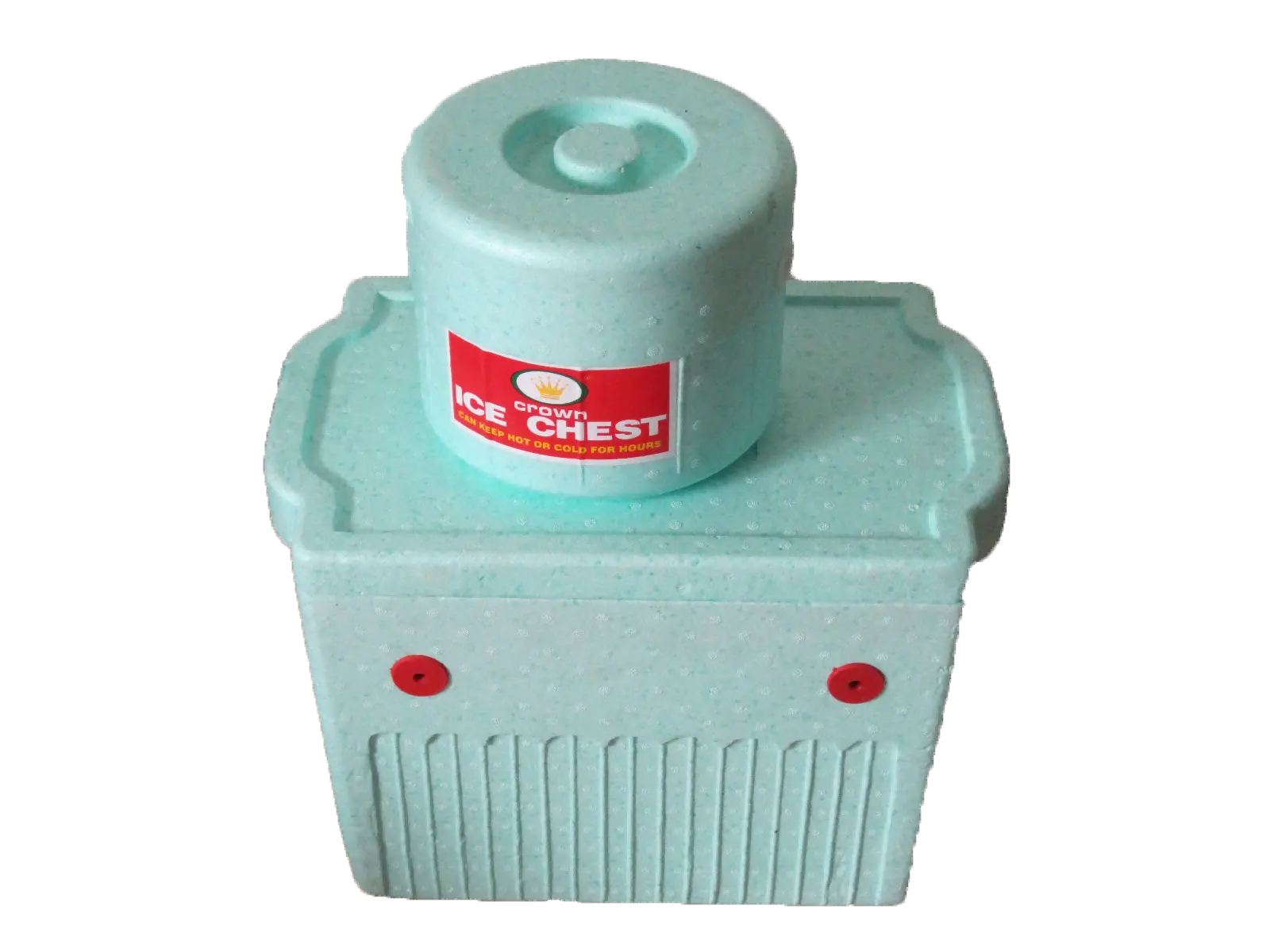

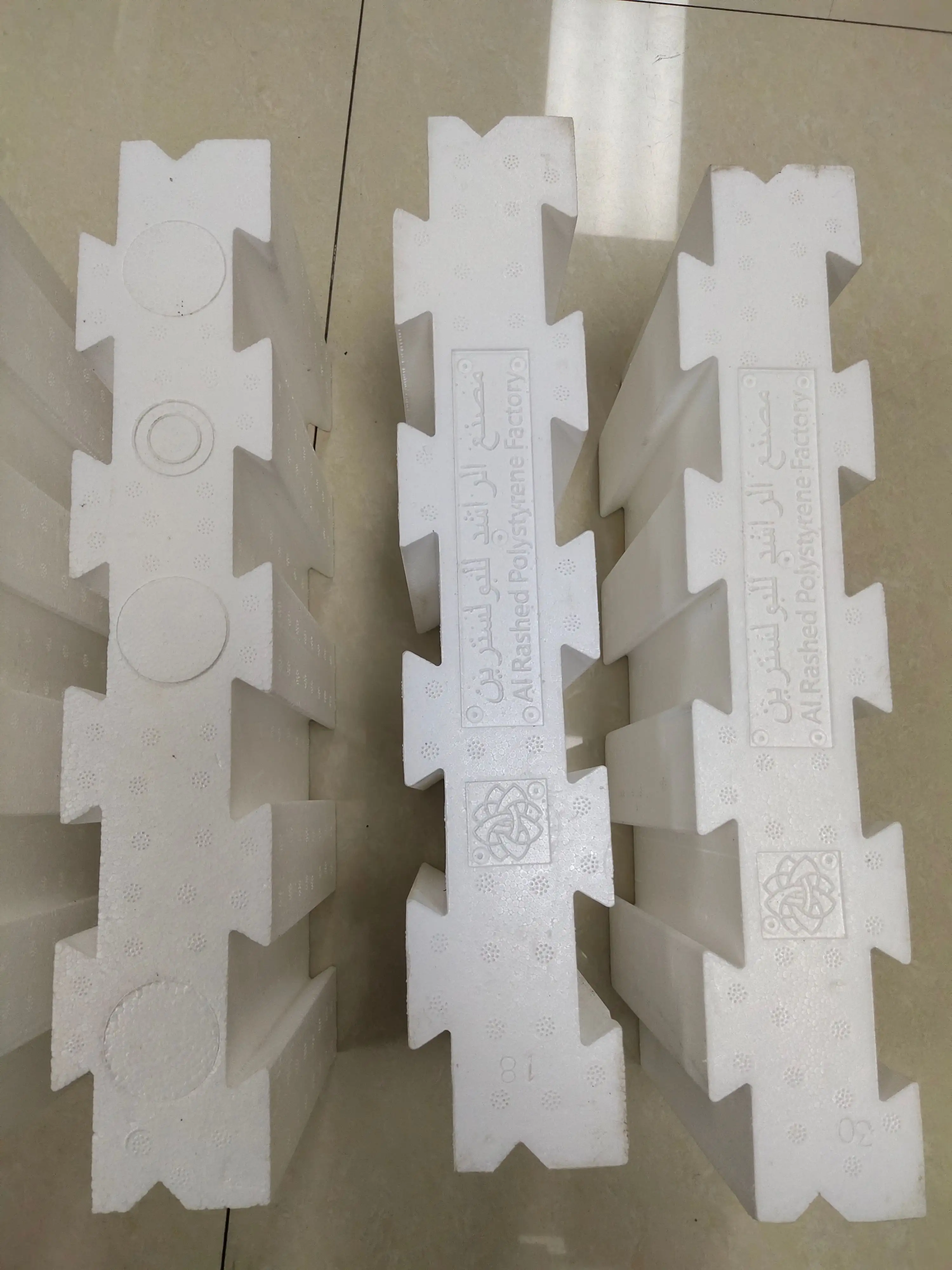

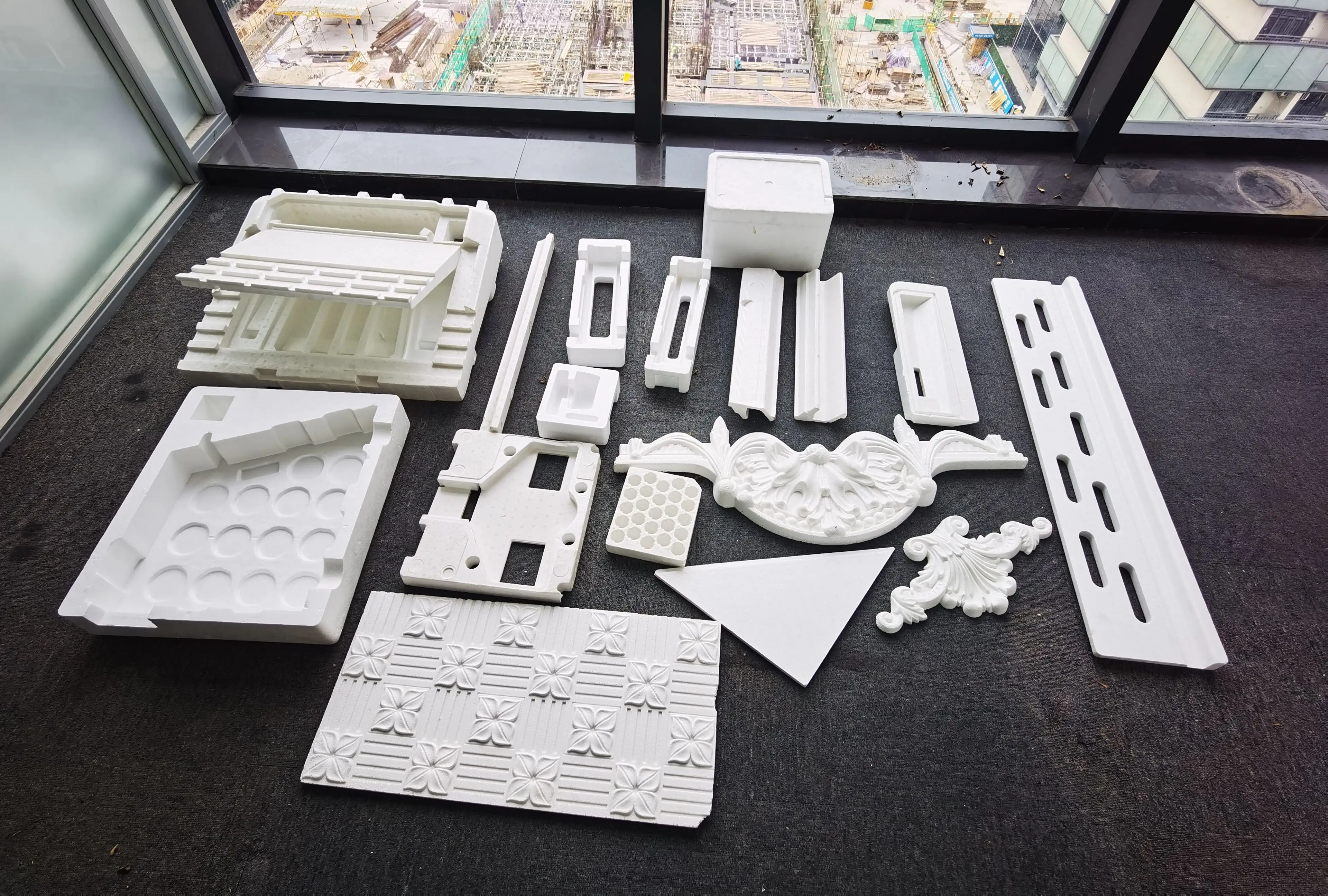

It used for running EPS molds to produce all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, ICF constructions, cars and Appliances inner parts and so on.
Company Advantage
• Minglong has formed a complete production and sales service system to provide reasonable services for consumers.
• Good geographic location, excellent traffic conditions, and telecommunications make contribution to Minglong's sustainable development.
• Founded in Minglong always maintains a dominant position in the fierce competition depending on strong economic strength, advanced production capability, and good business reputation.
Minglong's tools are of fine workmanship and good quality. Feel free to call us. Your consultation is the best trust for us!
