Product details of the eps granulator


Product Information

Minglong eps granulator presents a perfect marketing effect with its appealing design style. Its design comes out from our designers who have put their efforts on the innovation of design day-and-night. We guarantee our success by performing quality tests on the product. This product is considered to have broad development prospects.

Characteristics

1.These machines are designed to efficiently wrap EPS products in protective materials for transportation, storage, or distribution purposes. EPS packing machines come in various configurations and sizes to accommodate different types and sizes of EPS products.

2.They are commonly used in EPS manufacturing facilities, warehouses, and distribution centers to streamline the packaging process and ensure the safe transportation of EPS products to their destination.

3.EPS Packing Machine is a device that automatically wraps or packages expanded polystyrene (EPS) products in plastic film for protection and transportation.

4.EPS packing machine is a specialized piece of equipment designed to efficiently package expanded polystyrene (EPS) products. It automates the process of bundling, wrapping, or enclosing EPS items to protect them during transportation and storage.

3 (35)
3615070788_1927026388

5.These machines are commonly used in industries that produce EPS products such as insulation panels, packaging materials, and other EPS-based items.


6.Common Types Of EPS Packing Machines Include:

Four-side wrapping machines: Wrap EPS blocks or sheets with plastic film on four sides.

Six-side bagging machines: Enclose EPS products in plastic bags with sealing on all six sides.

Orbital wrapping machines: Wrap EPS bundles with stretch film in an orbital pattern.

By automating the packaging process, EPS packing machines improve efficiency, reduce labor costs, and ensure consistent product protection.

Technical Data

Model ML-600CP ML-600SP
Power 2kw 18kw
Power Supply AC 220V 1/3PH 50/60HZ AC 380/220V 3PH 50/60HZ
Tunnel Size  L*W*H / 2800*600*400mm
Max. Package Size  L*W*H L(unlimited)*500*300mm W500*H300mm
Blade Length 1200mm /
Air Temperature 0 ~ 300 0 ~ 300
Table Height 820±50mm 820±50mm
Packing Speed 15m/min. 0 ~ 15m/min.
External Air Source 6 ~ 8kg/cm2 /
Shrink Film PE PE
Machine Size  L*W*H 1950*1950*1865mm 3800*1950*1750mm
Weight 480kgs 865kgs

Product Features

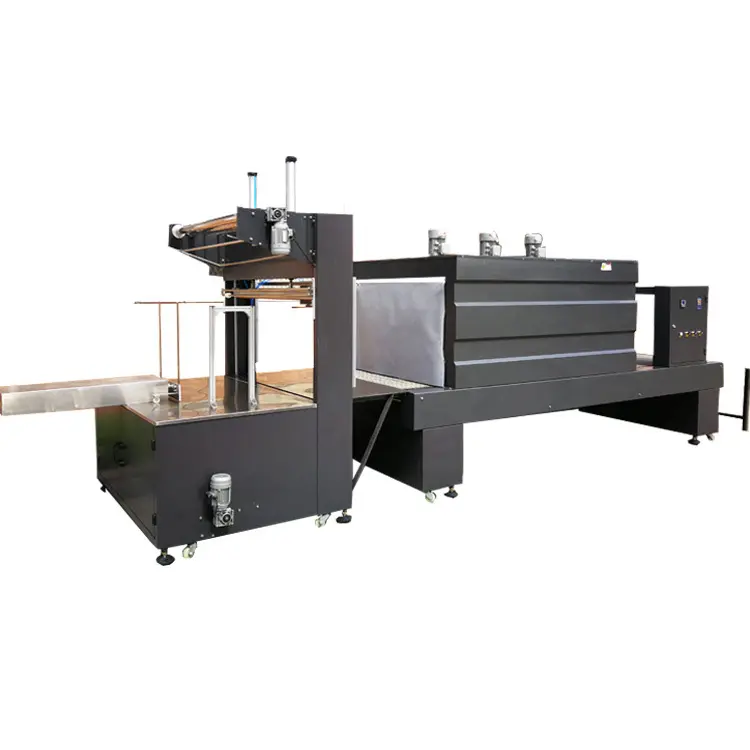

Fully-auto Straight Feeding Sleeve Sealer & Shrink Tunnel

部位展示 (1)

1. ML-600CP+ML-600SP Fully-auto Straight Feeding Sleeve Sealer&Shrink Tunnel adopts the unique linear design with compact structure. It’s very suitable for some limited space and packing items without adjusting the forward direction. What’s more, there is no length limits;


2. It can work independently and also can connect with the production line to realize the unmanned assembly line with the function of auto feeding, film wrapping, sealing, shrinking, cooling and stereotypes;


3. The foreign advanced technology and production process make sure stable performance;


4. Schneider PLC programmable process controller makes it to achieve the mechanical, electrical and pneumatic integration;

5. After a special modification, the light and small products can also be packed;


6. It has the advantages of speed and connection compared with the common side feeding machine;


7. The sealing line is solid without cracking and anti-sticking by using special blade;


8. Two groups of imported level photoelectric devices are used to accurate positioning;


9. The imported conveyor belt is durable and the conveyor speed is controlled by the frequency inverter;

部位展示 (2)
部位展示 (3)

10. The user-friendly cabinet makes the operator’s operation much easier;


11. The pressing device equipped behind the sealing makes sure that position is stable even for the light product during the procession;


12. ML-600SP shrink tunnel adopts the imported double recycling motors,so that the hot air in the tunnel is even to have more beautiful shrink effect;


13. The outside security cover can be installed according to the customers requirement;

14. The chain conveyor made of solid steel covered with imported silicone tube is very durable. Besides the chain conveyor, we also have different conveyors according the products shape and material;


15. The frequency inverter controls the speed the conveyor;


16. The separate control box makes sure the electrical components have good ventilation;


17. This machine is mainly applied to the longer products, such as cartons or paper trays which contain drink, beer, water, cans or glass bottles collection or single shrink wrapping.

部位展示 (4)

Advantages

1. Reinforce aluminum cast-solid ring with strong structure makes steady in wrapping


2. The higher level main board with stronger structure and frame for wrapping.


3. Structure of the conveyor will protect the surface of the product.


4. Automatic infeed conveyor system and outfeed conveyor system.


5. Conveyors driven by motor with gear box.


6. Different type conveyors available via package

2 (47)
2 (46)

7. Automatic material cutter.


8. Automatic material feeding and cutting device.


9. Automatic material clamping for next wrapping.


10. Sensor and PLC program control.


11. The operation parameter is adjustable.


12. This device makes machine automatic and unmanned operation.

Function And Application

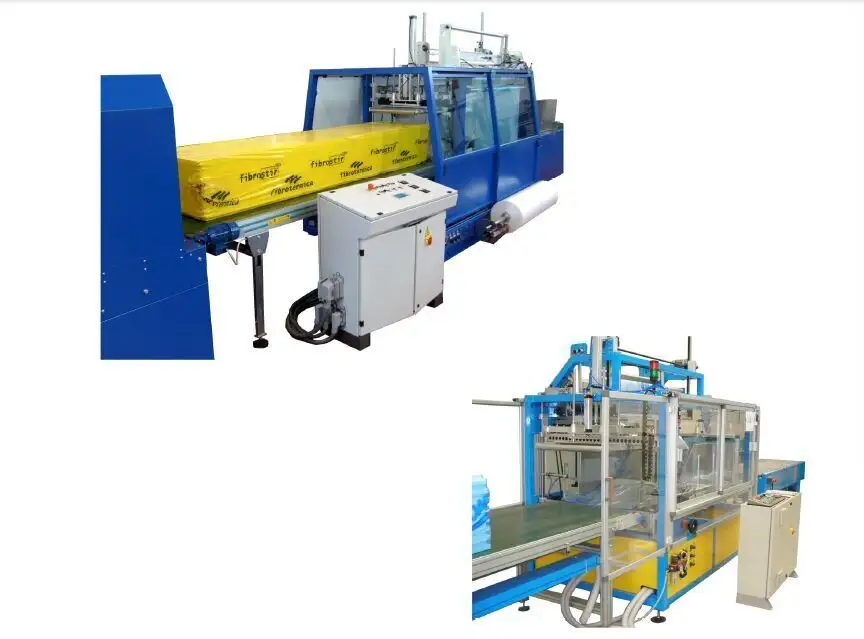

EPS packing machine is a specialized piece of equipment used for the packaging of Expanded Polystyrene (EPS) products,

such as EPS blocks, sheets, or molded shapes and other similar size products.

633959688918125000 (3)
633959688918125000 (3)
工作场景 (2) (10)
工作场景 (2) (10)
工作场景 (1) (9)
工作场景 (1) (9)
工作场景 (3) (9)
工作场景 (3) (9)
