Product details of the eps crusher


Product Description

Designed by professional designers, Minglong eps crusher is more unique than other products in the industry. The strict quality control system and the operation flow are formulated to improve the quality of finished product. Hangzhou Minglong Technology Co.,Ltd provides a strong price advantage.

Characteristics

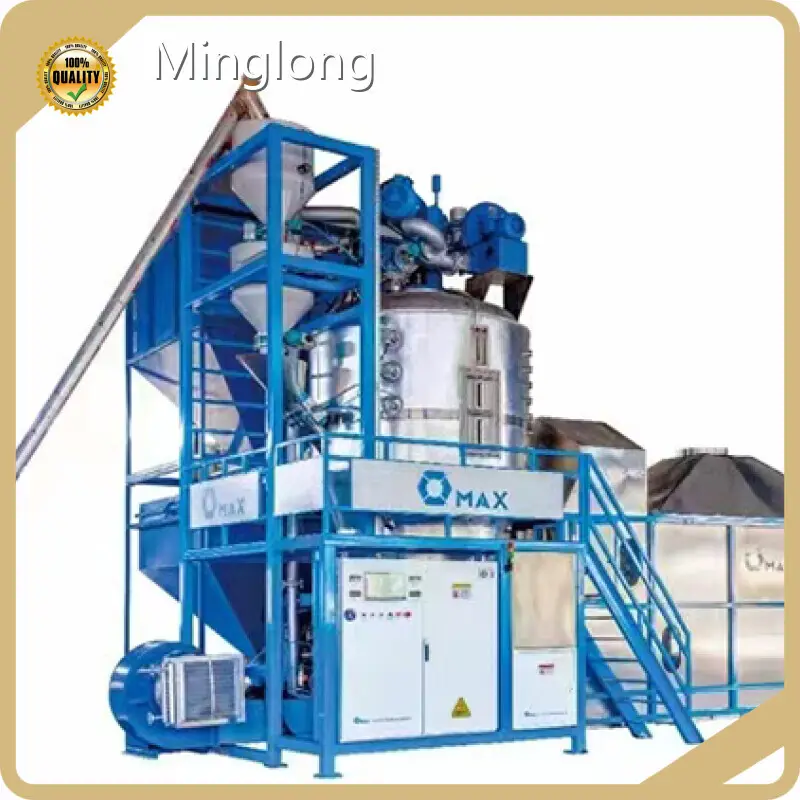

1.High Precise full auto EPS Styrofoam Batch Expander Machine use for expanding and producing EPS foam beads and the computer automatic control the whole p rocess, automatic feeding and  weighing material, realize automatic production. This pre-expander has different types for customers with small, middle and big capacity and different required density. It can finish first expansion and second expansion.

2.This pre-expander has a big capacity, apply the imported spare parts such as the Germany and Japan famous brand, the products with very small tolerance.

3. The machine has the drying system inside barrel, and with the drying bed for second drying.

4. The machine design with advanced design and making, It use several steam pipes into the barrel which keep the steam equality for the same size EPS beads and high quality products. The machine bottom has several clean door which can clean the barrel inside anytime, it is easy to repair and operation. The feeding and weighing system can be put on the top of the machine, which can save the space of the workshop.

5. The machine use the high quality material to make, the barrel and main spindle and mix rods, material hopper and door all use the 304 Stainless steel, the main barrel has three layers, very few problems, with a long working time.

6. The machine with the function of auto adjusting the density of the material.

undefined

Technical Data

ITEM FDS930A/B FDS1100A/B FDS1400I-II FDS1670I-II
Expansion Chamber Diameter DN930 DN1100 DN1400 DN1660
Volume 0.9m3 1.4m3 2.1m3 4.8m3
Steam Consumption 4-6kg/cycle 6-8kg/cycle 8-10kg/cycle 11-14kg/cycle
Compressed Air Consumption 0.5-0.7m3/cycle 0.9-1.1m3/cycle 0.5-0.8m3/cycle 0.7-1.1m3/cycle
Pressure 0.5-0.8Mpa (5-8bars)
Capacity 4g/l     250kg/h 360kg/h
9g/l 230kg/h 320kg/h 450kg/h 560kg/h
15g/l 320kg/h 550kg/h 750kg/h 900 kg/h
30g/l 670kg/h 850kg/h 1000kg/h 1350 kg/h
Connected Load/Power 15.5KW 17.5KW 22.5KW 24.5KW
Expanded Density 10-100kg/m3 10-40kg/m3 4-40kg/m3 4-40kg/m3
Density Tolerance <±2.5% <±3% <±3% <±3%
Overall Dimension(cm) 290×420×590 290×450×590 650×450×450 900×350×550
Machine weight 2700kg 3200kg 4500kg 4800kg

Advantages

Frequency spindle: the spindle rotation speed can be adjusted according to the raw material process,for ensuring that the material level can control the expanding weight precisely

Steam system: adopt relief valve from YOSHITAKE,Japan, with high-precision drainage valve and filter to ensure steam pressure more

stable.

Pressure control: international pressure sensor, German BATTON angle-seat valve and multi-valve exhaust system are used to ensure

constant temperature and pressure expanding in the bucket, make sure the expanding process more stable and accurate.

Temperature control: The international temperature sensor and German BATTON steam and air dual proportional valve are used to

control the temperature, so maintain the precise expanding temperature, for high -density expanding.

2-1(1)
4(1)

Weighing and feeding: electronic weighing for feeding, and the feeding weight is setup on the touch screen. The weighing devi ce will automatically weigh to achieve accurate feeding.

Material level control: adopt the vibration sensor from Korea to control expanding material level precisely, ensuring the uni form density of raw material particles.

material level of fluidizer bed: the height of material level can be adjusted to ensure the aging effect of expanded particles.

flap feeding device of fluidizer bed ensure the high efficiency of expanding particle

feeding Crushing device at bottom of fluidizer bed: to ensure convenient clean of fluidizer bed

Detail Of Key Parts

发泡前后对比
Color screen monitor
German and Japan valves (1)
German and Japan valves
German and Japan valves (2)
German and Japan valves

Production Process

发泡前
Before foaming
发泡后
After foaming
发泡前后对比
Comparison before and after foaming

Function And Application

It used for making the EPS raw material expansion into EPS foam beads, which used for producing all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, constructions and so on.

工作场景 (1)
工作场景 (1)
工作场景2
工作场景2
综合样品 (3)
综合样品 (3)
