Characteristics

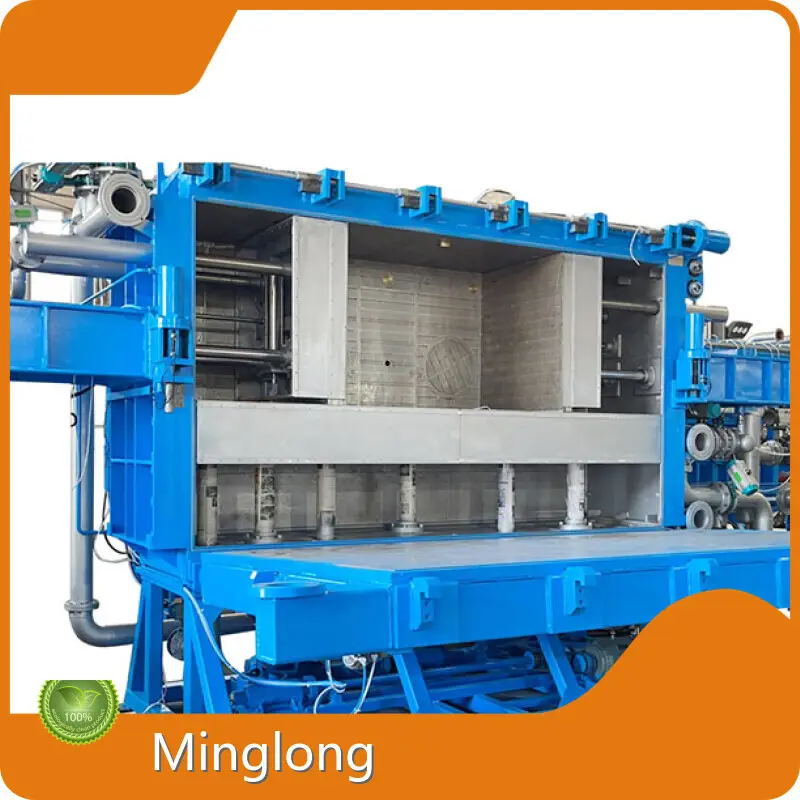

Adjustable Thermocol Insulation Sheets Machine
Control System
PLC and human-touch Control, electrical controller and computer control system are available.
Structure Design
High quality square tube and steel plate are used for the machine’s structure in perfect strength without deformation.
Hydraulic station control the signal door, model’s stripping, and locking device.
Spare parts and fittings are high quality products of well-known brand which keep the machine in a long service life.
Processes
Automatic pneumatic feeding and fan feeding methods
Heat treatment, material feeding
Production Efficiency
Fast cooling speed and low cost.
High production efficiency: a light board only takes 2-3min.
Products with low moisture content and stable size
Energy saving
Technical Data
| ITEM | Unit | SPB2000V | SPB3000V | SPB4000V | SPB6000V | |
| Mould Size | mm | 2050*1240*630 | 3080*1240*630 | 4080*1240*1030 | 6080*1240*1030 | |
| Block Size | mm | 2000*1000*500 | 3000*1200*600 | 4000*1200*1000 | 6000*1200*1000 | |
| Steam | Consumption | kg | 18～25 | 55～65 | 60～85 | 95～120 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Compressed air | Consumption | M3 | 1～1.2 | 2～2.2 | 1.8～2.5 | 2～3 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Vacuum cooling water | Entry | mm | DN40 | DN40 | DN40 | DN40 |
| Consumption | m3/cycle | 0.4 | 0.6 | 0.8 | 1 | |
| Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2～0.4 | 0.2～0.4 | |
| Drainage | Vacuum drain | mm | DN100 | DN125 | DN125 | DN150 |
| Down drain | mm | DN10 | DN150 | DN150 | DN150 | |
| Fan drain vent | mm | DN100 | DN150 | DN150 | DN150 | |
| Capacity @15kg/m3 | min/cycle | 10 | 15 | 7 | 8 | |
| Connected Power | KW | 7 | 9.5 | 24.5 | 32.25 | |
Advantages
1. High Quality EPS Foam Block Moulding Machine Fully automatic working by computer control system with PLC and color touch screen.
2. Fastest working process and shortest cycle time, Saving energy and biggest capacity.
3. Germany technology and pipe control system, it can make the lowest and highest density from 4g/l to 50g/l block, the best quality and most popular block machine.
4. It can adjust the block size, with bigger feeding system and safety lock control system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
7. Have vacuum and air cooling system, horizontal and vertical types.
8. The machine can adjust the block mould size to get different size of the EPS block products.
Detail Of Key Parts
Function And Application
It used to produce EPS blocks for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.
Company Advantages
· Being in the business for many years, we have developed a strong supply network, thus Minglong EPS equipment can always be made of high-quality materials.
· The quality of the product can withstand the test of time.
· Hangzhou Minglong Technology Co.,Ltd's customer service will be pleased to assist you in case of any problems occurring during the process.
Company Features
· Under the steady development, Hangzhou Minglong Technology Co.,Ltd has been world-widely recognized by its high-quality products such as EPS equipment.
· We have an expert team. They manage highly complex operations with a massive scale. They allow us to provide products such as EPS equipment for our customers in an efficient and reliable manner.
· Hangzhou Minglong Technology Co.,Ltd sticks to the great dream of leading the development of EPS equipment industry. Inquire online!
Application of the Product
EPS equipment of Minglong can be used in various scenarios in different fields.
Minglong has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
