Safe to Use Eps Foam Cutting Machine
Characteristics

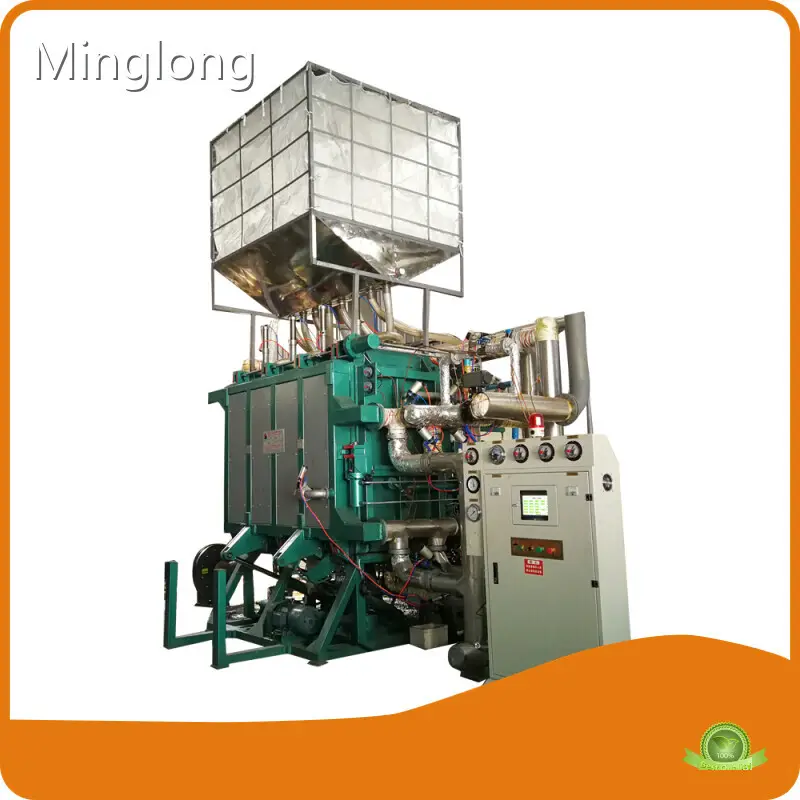

Adjustable Thermocol EPS Block Molding Machine
Control System
PLC and human-touch Control, electrical controller and computer control system are available.
Structure Design
High quality square tube and steel plate are used for the machine’s structure in perfect strength without deformation.
Hydraulic station control the signal door, model’s stripping, and locking device.
Spare parts and fittings are high quality products of well-known brand which keep the machine in a long service life.
Processes
Automatic pneumatic feeding and fan feeding methods
Heat treatment, material feeding
Production Efficiency
Fast cooling speed and low cost.
High production efficiency: a light board only takes 2-3min.
Products with low moisture content and stable size
Energy saving
Technical Data
| ITEM | Unit | SPB2000V | SPB3000V | SPB4000V | SPB6000V | |
| Mould Size | mm | 2050*1240*630 | 3080*1240*630 | 4080*1240*1030 | 6080*1240*1030 | |
| Block Size | mm | 2000*1000*500 | 3000*1200*600 | 4000*1200*1000 | 6000*1200*1000 | |
| Steam | Consumption | kg | 18～25 | 55～65 | 60～85 | 95～120 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Compressed air | Consumption | M3 | 1～1.2 | 2～2.2 | 1.8～2.5 | 2～3 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Vacuum cooling water | Entry | mm | DN40 | DN40 | DN40 | DN40 |
| Consumption | m3/cycle | 0.4 | 0.6 | 0.8 | 1 | |
| Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2～0.4 | 0.2～0.4 | |
| Drainage | Vacuum drain | mm | DN100 | DN125 | DN125 | DN150 |
| Down drain | mm | DN10 | DN150 | DN150 | DN150 | |
| Fan drain vent | mm | DN100 | DN150 | DN150 | DN150 | |
| Capacity @15kg/m3 | min/cycle | 10 | 15 | 7 | 8 | |
| Connected Power | KW | 7 | 9.5 | 24.5 | 32.25 | |
Advantages
1. High Quality EPS Foam Block Moulding Machine Fully automatic working by computer control system with PLC and color touch screen.
2. Fastest working process and shortest cycle time, Saving energy and biggest capacity.
3. Germany technology and pipe control system, it can make the lowest and highest density from 4g/l to 50g/l block, the best quality and most popular block machine.
4. It can adjust the block size, with bigger feeding system and safety lock control system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
7. Have vacuum and air cooling system, horizontal and vertical types.
8. The machine can adjust the block mould size to get different size of the EPS block products.
Detail Of Key Parts
Function And Application
It used to produce EPS blocks for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.
Company Advantages
· Minglong eps foam cutting machine is made of materials that have strong durability.
· Our experienced QC teams ensure the product to be in its best quality.
· eps foam cutting machine advances with time.
Company Features
· After years of dedication to eps foam cutting machine production, Hangzhou Minglong Technology Co.,Ltd has already become an expert with competence in R&D and manufacture.
· Minglong's main focus is to utilize advanced technology to produce eps foam cutting machine .
· We think highly of the sustainable business mode. Through upgrading our production procedures, we strive to make a balance among the development of economic, social, and environmental factors.
Application of the Product
The eps foam cutting machine produced by Minglong has a wide range of applications.
While providing quality products, Minglong is dedicated to providing personalized solutions for customers according to their needs and actual situations.
