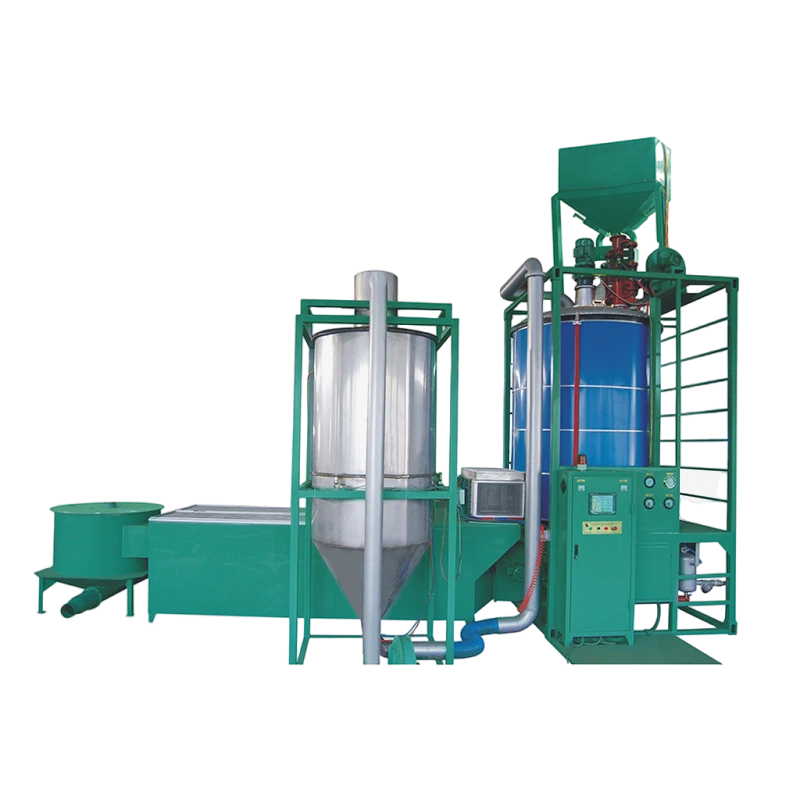

This machine use for expanding and producing EPS foam beads and the computer automatic control the whole process, automatic feeding and weighing material, realize automatic production. This pre-expander has different types for customers with small, middle and big capacity and different required density. It can finish first expansion and second expansion.
Characteristics
1.This pre-expander has a big capacity, apply the imported spare parts such as the Germany and Japan famous brand, the products with very small tolerance.
2. The machine has the drying system inside barrel, and with the drying bed for second drying.
3. The machine design with advanced design and making, It use several steam pipes into the barrel which keep the steam equality for the same size EPS beads and high quality products. The machine bottom has several clean door which can clean the barrel inside anytime, it is easy to repair and operation. The feeding and weighing system can be put on the top of the machine, which can save the space of the workshop.
4. The machine use the high quality material to make, the barrel and main spindle and mix rods, material hopper and door all use the 304 Stainless steel, the main barrel has three layers, very few problems, with a long working time.
5. The machine with the function of auto adjusting the density of the material.
Technical Data
ITEM | FDS930A/B | FDS1100A/B | FDS1400I-II | FDS1670I-II | |
Expansion Chamber | Diameter | DN930 | DN1100 | DN1400 | DN1660 |
Volume | 0.9m3 | 1.4m3 | 2.1m3 | 4.8m3 | |
Steam | Consumption | 4-6kg/cycle | 6-8kg/cycle | 8-10kg/cycle | 11-14kg/cycle |
Compressed Air | Consumption | 0.5-0.7m3/cycle | 0.9-1.1m3/cycle | 0.5-0.8m3/cycle | 0.7-1.1m3/cycle |
Pressure | 0.5-0.8Mpa (5-8bars) | ||||
Capacity | 4g/l | 250kg/h | 360kg/h | ||
9g/l | 230kg/h | 320kg/h | 450kg/h | 560kg/h | |
15g/l | 320kg/h | 550kg/h | 750kg/h | 900 kg/h | |
30g/l | 670kg/h | 850kg/h | 1000kg/h | 1350 kg/h | |
Connected Load/Power | 15.5KW | 17.5KW | 22.5KW | 24.5KW | |
Expanded Density | 10-100kg/m3 | 10-40kg/m3 | 4-40kg/m3 | 4-40kg/m3 | |
Density Tolerance | <±2.5% | <±3% | <±3% | <±3% | |
Overall Dimension(cm) | 290×420×590 | 290×450×590 | 650×450×450 | 900×350×550 | |
Machine weight | 2700kg | 3200kg | 4500kg | 4800kg |
Advantages
1. Fully automatic working by computer control system with PLC and color touch screen.
2. Have two expansion stages for making both low and high density products.
3. Use Germany and Japan proportional valves, sensors, reduce valve to control steady steam & air pressure, uniform steam coming to keep steady working and making high quality products.
4. Have the weight and density adjusting control system to get high accurate density products.
5.Have auto drying system, feeding system, weigh system, high efficient working and big capacity.
6. The machine made by 304 Stainless steel and all solid mix screws for long working life.
7. The machine excellent design and strong body structure, easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
Detail Of Key Parts
Production Process
Function And Application
It used for making the EPS raw material expansion into EPS foam beads, which used for producing all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, constructions and so on.
