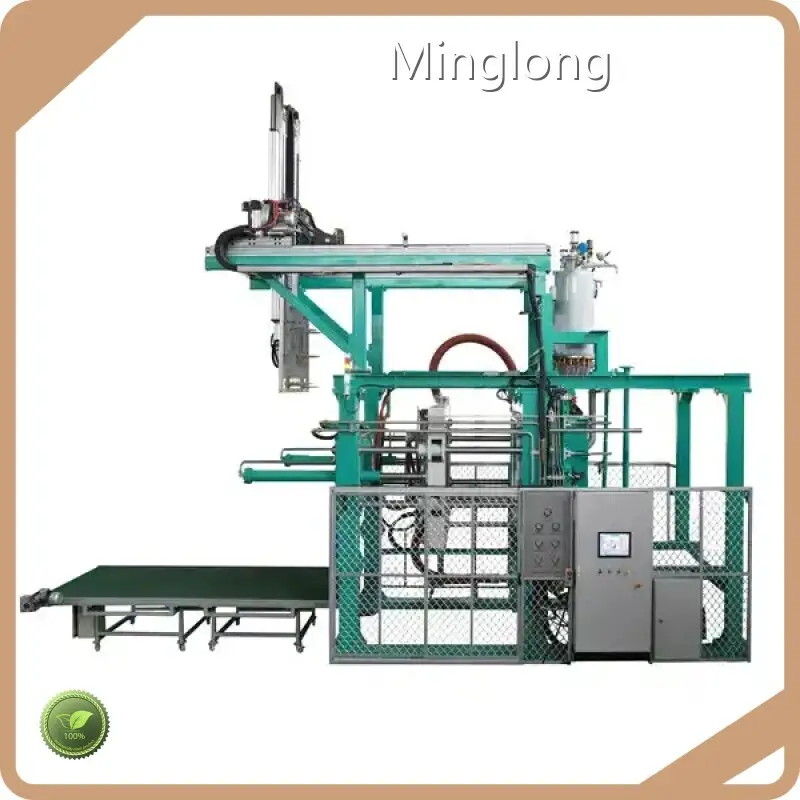

Best Price Eps Machine
Product details of the eps machine
Product Information
Minglong eps machine stands out from the crowd with technological innovation. The quality of this product is always guaranteed by our QC team. Hangzhou Minglong Technology Co.,Ltd implements a strict internal quality control system to reward customers with superior quality.
Characteristics
1. This machine use for producing the shape forming packing products and some construction products, and it applies computer to control the whole process automatically, low voltage and high efficiency, fast forming, saving energy and big capacity.
2. It use advanced vacuum, condenser, and hydraulic system, different kind of heating, feeding and cooling. It can install the small and big mold.
3.There are four kinds of operating mode (Automatic, Semi-automatic, Middle-startup and Manual operation)with safe-guard protective device to ensure safe operation. Perfect failure self-diagnosing and overloading protection system, which keep machine safe and steady working.
4..Most of the main components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
5. This machine can choose mechanical ejection mold mode or hydraulic ejection mold mode.
6. This machine has the fast installing mold system.
Technical Data
| ITEM | Unit | FAV1400 | FAV1750 | FAV2000 | |
| Mould Dimension | mm | 1400*1250 | 1750*1450 | 2000*1650 | |
| Max product | mm | 1250*1100*420 | 1600*1300*420 | 1850*1500*420 | |
| Stroke | mm | 150~1500 | 150~1500 | 150~1500 | |
| Steam | Entry | mm | 89/108 | 108 | 125 |
| Consumption | kg/cycle | 6~9 | 6~11 | 8~13 | |
| Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
| Cooling water | Entry | mm | 89/108 | 108 | 125 |
| Consumption | kg/cycle | 30~90 | 35~100 | 40~130 | |
| Pressure | Mpa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | |
| Compressed Air | Entry | mm | 50/76 | 76 | 76/89 |
| Consumption | m3/cycle | 1.8 | 2 | 2.5 | |
| Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
| Vaccum Pump Capacity | m3/h | 230 | 290 | 290 | |
| Cycle Time | s | 60-120 | 60-120 | 70-140 | |
| Connected Load/Power | kw | 12.5 | 16.5 | 16.5 | |
| Overall Dimension | mm | 5700*1920*3250 | 5700*2030*3450 | 5700*2240*3680 | |
| Machine Weight | kg | 6500 | 7500 | 9500 | |
Advantages
1. Fully automatic working by computer control system with PLC and color touch screen.
2.Fast working process and short cycle time, Saving energy and high efficiency working capacity.
3. Germany and Japan proportional valves, meters, sensors, reduce valve, Europe pipe system and Schneider electronics to control steady steam and air pressure for steady working and making high quality products.
4. The machine has fast installing mold and auto locking mold system, and with foundation legs and electric crane, feeding oil system, single vacuum and condenser system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
Detail Of Key Parts
Function And Application
It used for running EPS molds to produce all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, ICF constructions, cars and Appliances inner parts and so on.
Company Advantage
• There is an excellent advantage in our company's location. The transportation is convenient, which is conducive to the circulation and transportation of products.
• Our company has formed a complete production and sales service system to provide reasonable services for consumers.
• Since the inception in Minglong has been engaged in the production and sales of EPS machine, EPP machine. Now we become a leader in the industry.
• To meet the diversified needs of domestic and foreign customers, Minglong has a domestic excellent R&D talents team and a large-scale production team.
• The sales range of EPS machine, EPP machine we produce covers the whole country. At present, some Asian countries are actively looking for cooperation with us and it greatly shows a broad development prospect for our products.
If you want to purchase EPS machine, EPP machine, please contact Minglong or leave a message. We will reply you as soon as possible.
