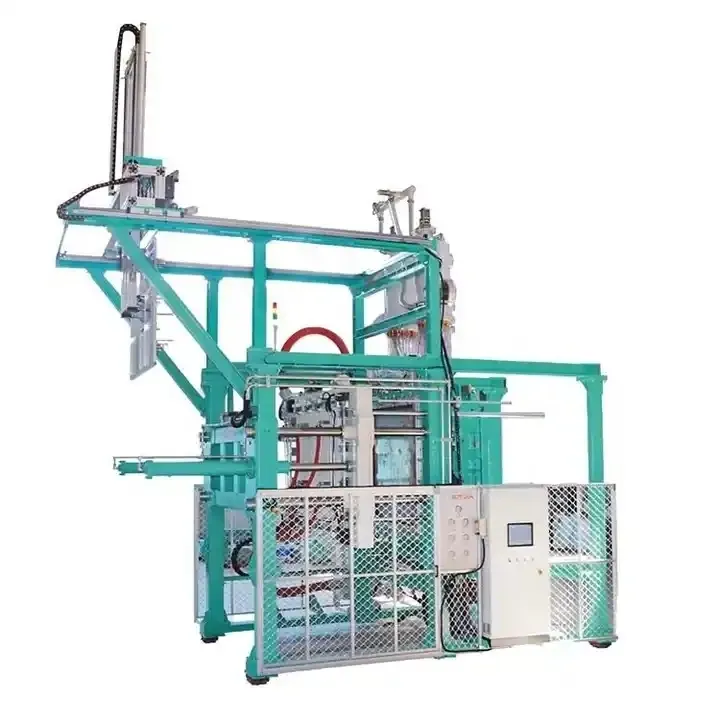

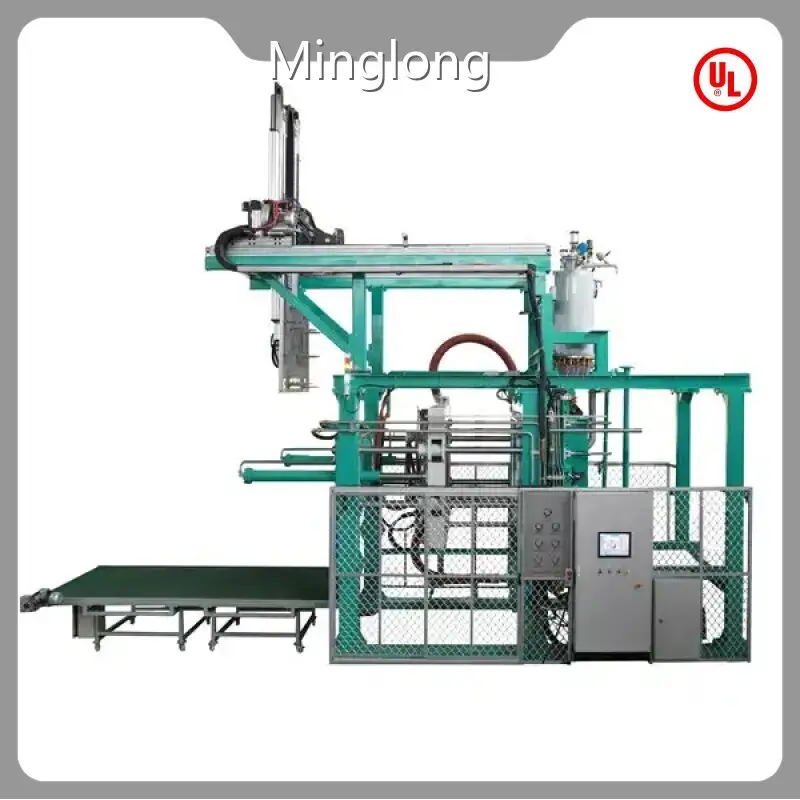

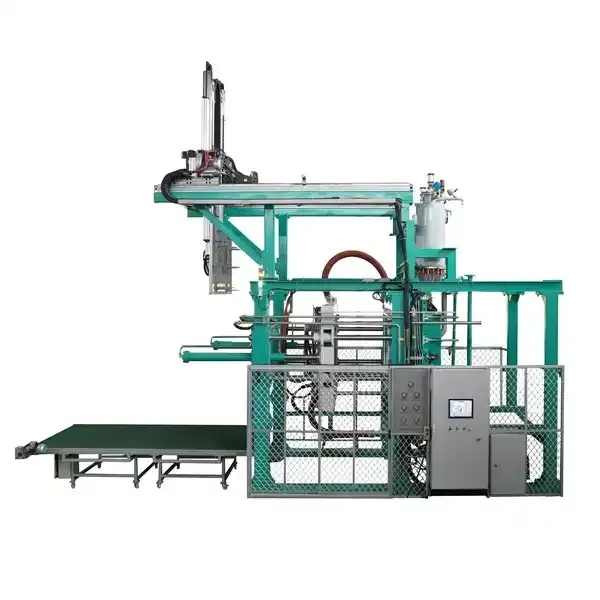

Product details of the eps foam machine
Product Description
Minglong eps foam machine is designed in line with the international production standards. The product caters to the market need in durability and performance. Armed with modern administration theory, rich capital resource, Hangzhou Minglong Technology Co.,Ltd possesses a strong development potential.
Characteristics
1. This machine use for producing the shape forming packing products and some construction products, and it applies computer to control the whole process automatically, low voltage and high efficiency, fast forming, saving energy and big capacity.
2. It use advanced vacuum, condenser, and hydraulic system, different kind of heating, feeding and cooling. It can install the small and big mold.
3.There are four kinds of operating mode (Automatic, Semi-automatic, Middle-startup and Manual operation)with safe-guard protective device to ensure safe operation. Perfect failure self-diagnosing and overloading protection system, which keep machine safe and steady working.
4..Most of the main components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
5. This machine can choose mechanical ejection mold mode or hydraulic ejection mold mode.
6. This machine has the fast installing mold system.
Technical Data
| ITEM | Unit | FAV1400 | FAV1750 | FAV2000 | |
| Mould Dimension | mm | 1400*1250 | 1750*1450 | 2000*1650 | |
| Max product | mm | 1250*1100*420 | 1600*1300*420 | 1850*1500*420 | |
| Stroke | mm | 150~1500 | 150~1500 | 150~1500 | |
| Steam | Entry | mm | 89/108 | 108 | 125 |
| Consumption | kg/cycle | 6~9 | 6~11 | 8~13 | |
| Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
| Cooling water | Entry | mm | 89/108 | 108 | 125 |
| Consumption | kg/cycle | 30~90 | 35~100 | 40~130 | |
| Pressure | Mpa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | |
| Compressed Air | Entry | mm | 50/76 | 76 | 76/89 |
| Consumption | m3/cycle | 1.8 | 2 | 2.5 | |
| Pressure | Mpa | 0.5~0.7 | 0.5~0.7 | 0.5~0.7 | |
| Vaccum Pump Capacity | m3/h | 230 | 290 | 290 | |
| Cycle Time | s | 60-120 | 60-120 | 70-140 | |
| Connected Load/Power | kw | 12.5 | 16.5 | 16.5 | |
| Overall Dimension | mm | 5700*1920*3250 | 5700*2030*3450 | 5700*2240*3680 | |
| Machine Weight | kg | 6500 | 7500 | 9500 | |
Advantages
1. Fully automatic working by computer control system with PLC and color touch screen.
2.Fast working process and short cycle time, Saving energy and high efficiency working capacity.
3. Germany and Japan proportional valves, meters, sensors, reduce valve, Europe pipe system and Schneider electronics to control steady steam and air pressure for steady working and making high quality products.
4. The machine has fast installing mold and auto locking mold system, and with foundation legs and electric crane, feeding oil system, single vacuum and condenser system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
Detail Of Key Parts
Function And Application

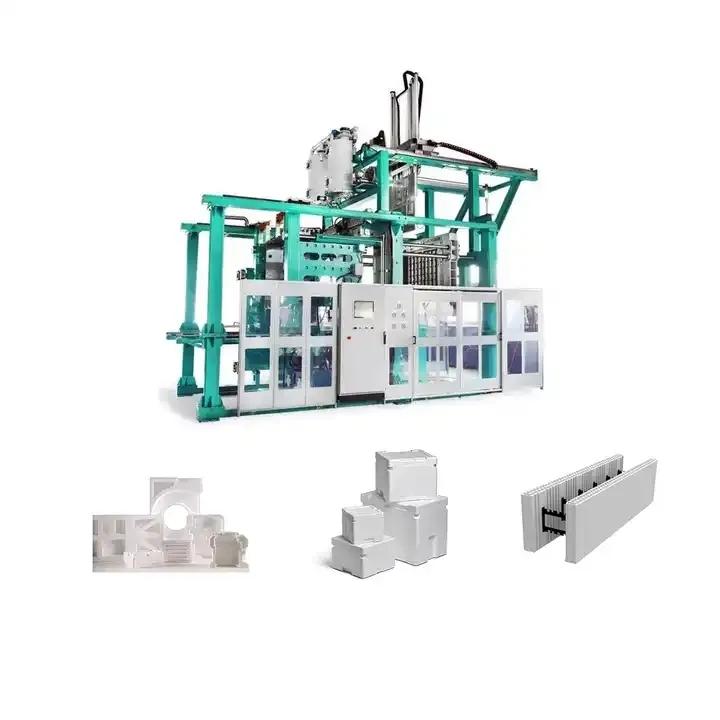

It used for running EPS molds to produce all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, ICF constructions, cars and Appliances inner parts and so on.
Company Advantage
• Our company owns a superior geographical location. There are convenient transportation, elegant ecological environment and abundant natural resources.
• Established in Minglong gains rich experience after years of development.
• We sell our products well in the domestic market and export them to different countries and regions all over the world, depending on the high-quality product and service.
Minglong focuses on producing all kinds of quality EPS machine, EPP machine. If you have any interest, your presence, guidance and cooperation are welcome.
