Eps Shape Moulding Machine Manufacturing
Product details of the eps shape moulding machine
Quick Detail
eps shape moulding machine ensures the high precision of products. One of the factors contributing to the popularity of this product is its excellent quality and strong reliability. Minglong's eps shape moulding machine can be used in different industries to meet the needs of customers. The product has been widely acknowledged by customers and plays an important role in the industry.
Product Introduction
eps shape moulding machine's specific details in Minglong are mainly reflected in the following aspects.
Characteristics
Adjustable Thermocol EPS Block Molding Machine
Control System
PLC and human-touch Control, electrical controller and computer control system are available.
Structure Design
High quality square tube and steel plate are used for the machine’s structure in perfect strength without deformation.
Hydraulic station control the signal door, model’s stripping, and locking device.
Spare parts and fittings are high quality products of well-known brand which keep the machine in a long service life.
Processes
Automatic pneumatic feeding and fan feeding methods
Heat treatment, material feeding
Production Efficiency
Fast cooling speed and low cost.
High production efficiency: a light board only takes 2-3min.
Products with low moisture content and stable size
Energy saving
Technical Data
| ITEM | Unit | SPB2000V | SPB3000V | SPB4000V | SPB6000V | |
| Mould Size | mm | 2050*1240*630 | 3080*1240*630 | 4080*1240*1030 | 6080*1240*1030 | |
| Block Size | mm | 2000*1000*500 | 3000*1200*600 | 4000*1200*1000 | 6000*1200*1000 | |
| Steam | Consumption | kg | 18～25 | 55～65 | 60～85 | 95～120 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Compressed air | Consumption | M3 | 1～1.2 | 2～2.2 | 1.8～2.5 | 2～3 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Vacuum cooling water | Entry | mm | DN40 | DN40 | DN40 | DN40 |
| Consumption | m3/cycle | 0.4 | 0.6 | 0.8 | 1 | |
| Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2～0.4 | 0.2～0.4 | |
| Drainage | Vacuum drain | mm | DN100 | DN125 | DN125 | DN150 |
| Down drain | mm | DN10 | DN150 | DN150 | DN150 | |
| Fan drain vent | mm | DN100 | DN150 | DN150 | DN150 | |
| Capacity @15kg/m3 | min/cycle | 10 | 15 | 7 | 8 | |
| Connected Power | KW | 7 | 9.5 | 24.5 | 32.25 | |
Advantages
1. High Quality EPS Foam Block Moulding Machine Fully automatic working by computer control system with PLC and color touch screen.
2. Fastest working process and shortest cycle time, Saving energy and biggest capacity.
3. Germany technology and pipe control system, it can make the lowest and highest density from 4g/l to 50g/l block, the best quality and most popular block machine.
4. It can adjust the block size, with bigger feeding system and safety lock control system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
7. Have vacuum and air cooling system, horizontal and vertical types.
8. The machine can adjust the block mould size to get different size of the EPS block products.

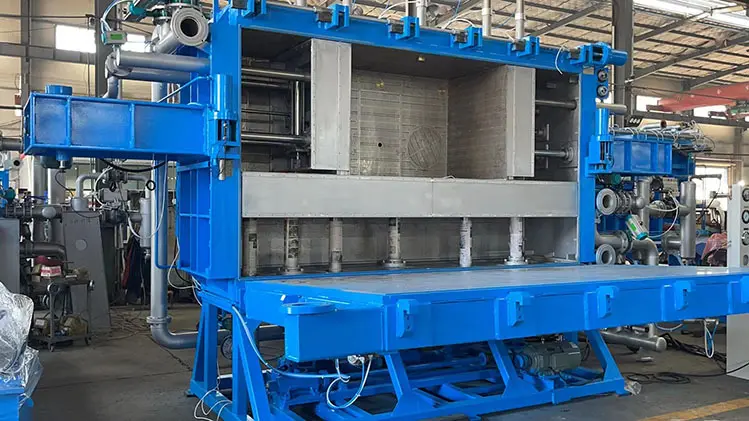

Detail Of Key Parts
Function And Application
It used to produce EPS blocks for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.
Company Advantages
Located in Hangzhou Minglong Technology Co.,Ltd is a company integrating R&D, production and sales. Our products include EPS machine, EPP machine. Our company adheres to the enterprise tenet of 'work hard to benefit the country', and abides by the management philosophy of 'people-oriented, mutual promotion and common development'. We strive to provide high-quality products and create a century-old brand to. Minglong runs a scientific and rigorous management team and has an excellent talents team. The team members are courageous to challenge and struggle. In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
Our products are available in various types and reasonable price. Welcome people from all walks of life to inquire and discuss business.
