Long Lasting Polystyrene Compactor
Product details of the polystyrene compactor
Product Description
Minglong polystyrene compactor is designed using the optimum quality raw material as per industry guidelines. Our qualified and experienced team guarantees the best quality product to our customers. By implementing the policy of polystyrene compactor, Minglong has successfully established the rules to improve the production level.
Characteristics

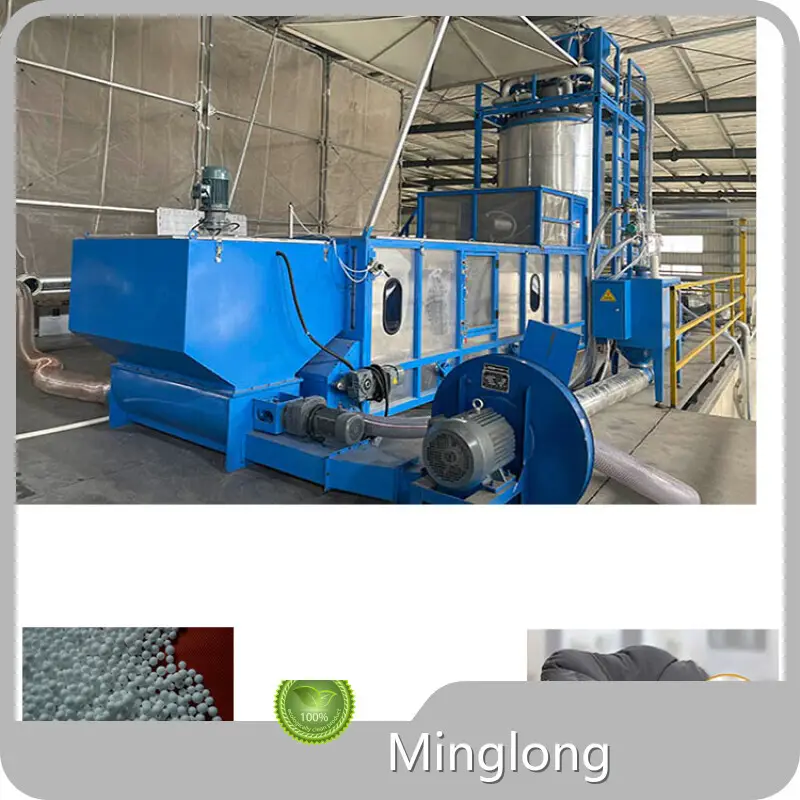

1.Expanded polystyrene machine machine use for expanding and producing EPS foam beads and the computer automatic control the whole p rocess, automatic feeding and weighing material, realize automatic production. This pre-expander has different types for customers with small, middle and big capacity and different required density. It can finish first expansion and second expansion.
2.This pre-expander has a big capacity, apply the imported spare parts such as the Germany and Japan famous brand, the products with very small tolerance.
3. The machine has the drying system inside barrel, and with the drying bed for second drying.
4. The machine design with advanced design and making, It use several steam pipes into the barrel which keep the steam equality for the same size EPS beads and high quality products. The machine bottom has several clean door which can clean the barrel inside anytime, it is easy to repair and operation. The feeding and weighing system can be put on the top of the machine, which can save the space of the workshop.
5. The machine use the high quality material to make, the barrel and main spindle and mix rods, material hopper and door all use the 304 Stainless steel, the main barrel has three layers, very few problems, with a long working time.
6. The machine with the function of auto adjusting the density of the material.
Technical Data
| ITEM | FDS930A/B | FDS1100A/B | FDS1400I-II | FDS1670I-II | |
| Expansion Chamber | Diameter | DN930 | DN1100 | DN1400 | DN1660 |
| Volume | 0.9m3 | 1.4m3 | 2.1m3 | 4.8m3 | |
| Steam | Consumption | 4-6kg/cycle | 6-8kg/cycle | 8-10kg/cycle | 11-14kg/cycle |
| Compressed Air | Consumption | 0.5-0.7m3/cycle | 0.9-1.1m3/cycle | 0.5-0.8m3/cycle | 0.7-1.1m3/cycle |
| Pressure | 0.5-0.8Mpa (5-8bars) | ||||
| Capacity | 4g/l | 250kg/h | 360kg/h | ||
| 9g/l | 230kg/h | 320kg/h | 450kg/h | 560kg/h | |
| 15g/l | 320kg/h | 550kg/h | 750kg/h | 900 kg/h | |
| 30g/l | 670kg/h | 850kg/h | 1000kg/h | 1350 kg/h | |
| Connected Load/Power | 15.5KW | 17.5KW | 22.5KW | 24.5KW | |
| Expanded Density | 10-100kg/m3 | 10-40kg/m3 | 4-40kg/m3 | 4-40kg/m3 | |
| Density Tolerance | <±2.5% | <±3% | <±3% | <±3% | |
| Overall Dimension(cm) | 290×420×590 | 290×450×590 | 650×450×450 | 900×350×550 | |
| Machine weight | 2700kg | 3200kg | 4500kg | 4800kg | |
Advantages
1. Fully automatic working by computer control system with PLC and color touch screen.
2. Have two expansion stages for making both low and high density products.
3. Use Germany and Japan proportional valves, sensors, reduce valve to control steady steam & air pressure, uniform steam coming to keep steady working and making high quality products.
4. Have the weight and density adjusting control system to get high accurate density products.
5.Have auto drying system, feeding system, weigh system, high efficient working and big capacity.
6. The machine made by 304 Stainless steel and all solid mix screws for long working life.
7. The machine excellent design and strong body structure, easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
Detail Of Key Parts
Production Process
Function And Application
It used for making the EPS raw material expansion into EPS foam beads, which used for producing all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, constructions and so on.
Company Feature
• Since the beginning in our company has continuously improved our production process and product quality, and gained industry recognition with high-quality products.
• The natural resources around Minglong are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
• Minglong's EPS machine, EPP machine are not only sold well in China but also exported to countries and regions such as br /> • To develop continuously, our company has recruited talents and established an elite team. They have high technical level and strong research and development strength.
Dear customer, if you are interested in Minglong's products and would like to know more about the products or services, please leave your contact information. We will contact you as soon as possible.
