Company Advantages
· The production of Minglong EPS production line adopts modern innovation concepts in consistence with industry trends.
· This product is widely appreciated by customers, with excellent performance and longer service life.
· Minglong's staff is professional in the techniques of EPS production line.
Characteristics

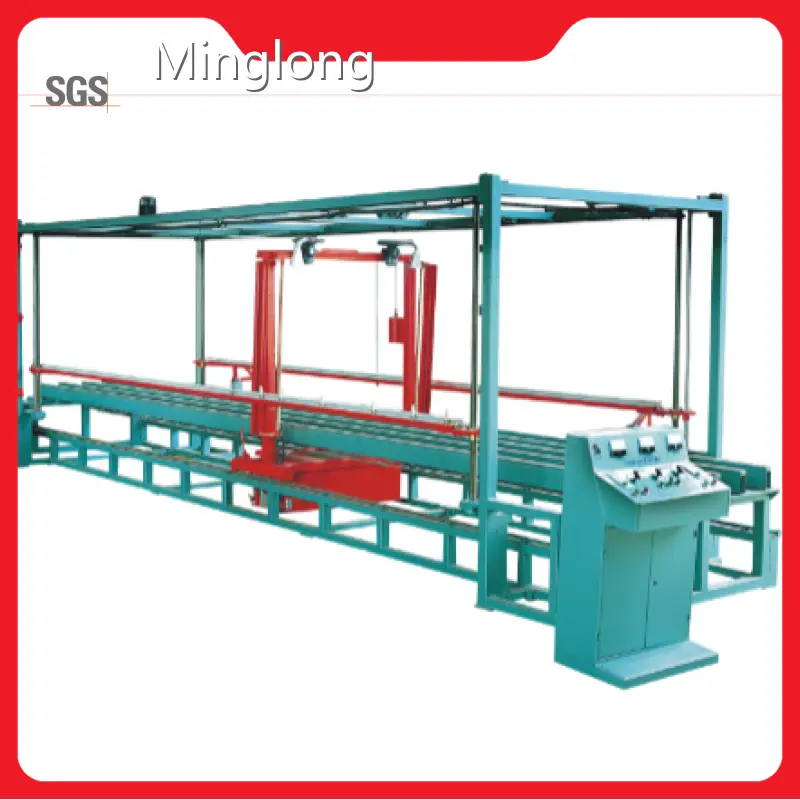

1. This machine can use for straight line cutting with three cutting direction: horizontal, portrait and vertical cutting, it can realize.
2 direction cutting at the same time which improves production efficiency. It is suitable for block cutting. It can also 2D and 3D cutting by computer design drawing for different kinds of shape forming instead of molds, which can save the cost of molds and promote efficiency.
3. This machine applies converter speed governing, which makes stable moving, and large range of step-less speed governing accordingly. Guide-rail drive makes cutting trim and flat. It applies motor-decelerator integrating system, which lowers the noise, has high practical value.
4. It applies two transformers and large power transformer, which promote the speed of cutting and lengthen service life.
5. This machine applies cutting retract device, which can shorten 3-10 mins when reposition.
6. This machine applies multi-wire cross cutting setting, which can cut the block to 3 to 5mm thin sheets.
7. There is the type of the continuous cutting machine controlled by the computer system.
Technical Data
TYPE B
ITEM | Unit | DSQ-2000B | DSQ-4000B | DSQ-6000B | |
Max Cutting Size | mm | 2000*1250*1300 | 4000*1250*1300 | 6000*1250*1300 | |
Heating Wires Amount | Horizontal | pcs | 80 | 80 | 80 |
Portrait | pcs | 30 | 30 | 30 | |
Vertical | pcs | 1 | 1 | 1 | |
Working Speed | m/min | 0~1.8 | 0~1.8 | 0~1.8 | |
Connected Load | kw | 21 | 21 | 21 | |
Overall Dimension | mm | 4800*1900*2500 | 6800*1900*2500 | 8800*1900*2500 | |
Weight | kg | 1000 | 1800 | 2200 |
TYPE C
ITEM | Unit | DSQ-3000C | DSQ-4000C | DSQ-6000C | |
Max Cutting Size | mm | 3000*1250*1250 | 4000*1250*1250 | 6000*1250*1250 | |
Heating Wires Amount | Horizontal | pcs | 60 | 60 | 60 |
Portrait | pcs | 60 | 60 | 60 | |
Vertical | pcs | 20 | 20 | 20 | |
Working Speed | m/min | 0~2 | 0~2 | 0~2 | |
Connected Load | kw | 35 | 35 | 35 | |
Overall Dimension | mm | 5800*2300*2600 | 6800*2300*2600 | 8800*2300*2600 | |
Weight | kg | 2000 | 2500 | 3000 |
Advantages
1. It has three ways cutting direction: Horizontal, portrait, vertical.
2. It can fix 100 cutting wires at same time and cut different size of the products.
3. It can cut in two direction automatically at the same with many wires for high capacity.
4. It can cut in strait line and 3D CNC cutting for all kinds of the products.
5. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
6. It can be continuous cutting and controlled by the computer system.
Function And Application
It used for cutting EPS blocks into different size and shapes for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.
Company Features
· Since the foundation, Hangzhou Minglong Technology Co.,Ltd has built a reputation in the field of developing and manufacturing of EPS production line.
· The technical level of Hangzhou Minglong Technology Co.,Ltd has reached the advanced level in China.
· Hangzhou Minglong Technology Co.,Ltd firmly believe there is no end on the road of pursuing excellence for EPS production line. Inquiry!
Product Details
Minglong's EPS production line is of exquisite workmanship, which is reflected in the details.
Enterprise Advantages
The complete equipment, strong technical force and staff with years of experience in production and research and development provide a strong guarantee for our development.
We have a perfect and mature service team. Based on this, we can provide you with excellent services to seek mutual benefit and create a better future!
Minglong is committed to becoming a leading enterprise in the industry. We take 'integrity, tenacity, and unyielding' as the enterprise spirit, and persist in the concept of 'quality is the soul of the enterprise and the foundation of the enterprise's survival'.
Since the establishment in our company has gained rich experience. Besides, our strong production capacity has been recognized by the industry.
Minglong's EPS machine, EPP machine are popular in the domestic market. They also enjoy a relatively high reputation in Southeast Asia, Europe, America, and other countries and regions.
