Product details of the eps machine


Product Information

Every detail of Minglong eps machine is delicately designed and carefully manufactured. Its performance is guaranteed by well-selected materials. Hangzhou Minglong Technology Co.,Ltd has established a sound quality control system to make sure the quality of the product.

Characteristics

1. 3D Panel Production Line refers to a manufacturing setup designed to produce 3D panels using Expanded Polystyrene (EPS) as the core material. The machine combines EPS foam with a metal wire mesh to create a strong, lightweight, and energy-efficient building material. 3D panels are innovative construction materials widely used in the building industry for their efficiency, versatility, and insulation properties.


2. 3D Panel Production Lines are equipped with automation and computer-controlled systems to improve efficiency and consistency in panel production. Additionally, these production lines can be customized to accommodate different panel sizes, shapes, and production capacities to meet the diverse needs of construction projects.

4 (31)
3 (33)

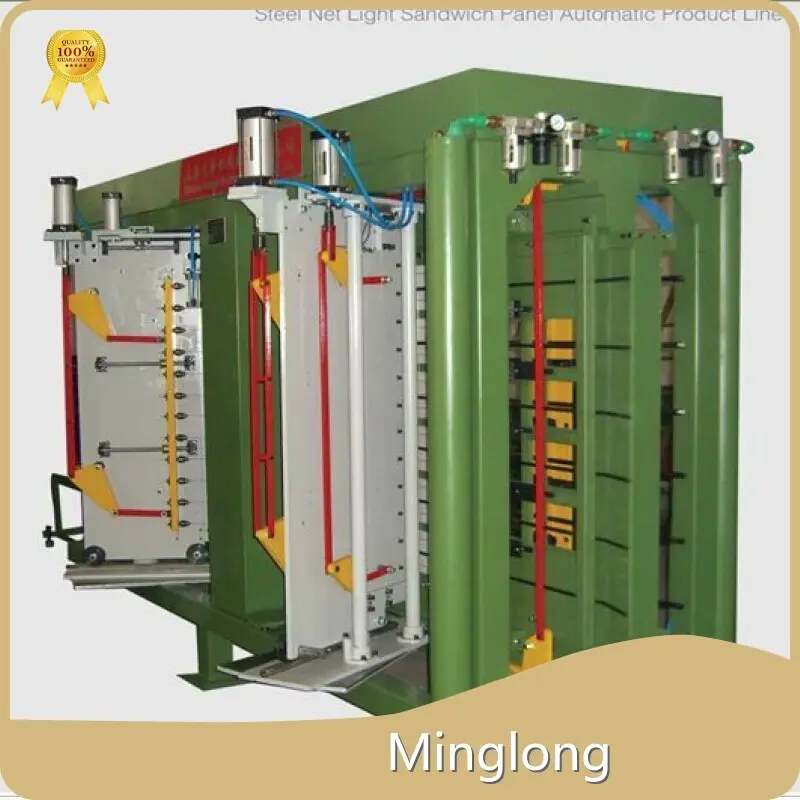

3. This production line consists of 2 parts: CH series steel net light sandwich panel inserted wire welding machine unit and 3DW-A steel net welding machine unit.

4. This production line has the advantage of high output, high welding quality, good evenness of panel, no need water to cooling the welding head, a small number of operator and etc. They are controlled by computer (PLC), so they could be operated and maintained easily. It is a mechanical-electronical integration HI-TECH production.

5. The welding machines for steel wire net-rack sandwich panel have two main types: vertical structure type and horizontal structure type.

6. Our machine have six features:

  • Vertical design:

The vertical design settle the high lack-welding rate problem of horizontal type. It makes operation and maintenance much easier.

  • Unique wire-threading mechanism:

Cut short wire in advance and insert into polystyrene panel by wire-threading mechanism. It can avoid multiple disadvantages of cutting while welding beside the machine.

  • Smart welding holder:

It makes the welding pressure more evenly and more strongly so that the solder joint can be steady.

  • Smooth and steady continuous operation:

The length of net sheet is equal to the length of polystyrene panel. So the connection of panel to panel is more convenient. The first panel can easily separate from the nest one after welded.

  • Wide choice of panel type:

The core material could be complete-panel-type rock wool, polystyrene, expanded perlite and so on. The application of rock wool and expanded perlite could rise the fireproofing level of light sandwich panel.

  • Wide choice of panel type:

There are many choice of the panel length and the thickness of the core material. Three types of panel could meet different needs of users. It also can be used as floor slab or roof boarding.

undefined

3D panel ofsteel wire net rack cement

polystyrene light sandwich panel

流程图

Technical Data

EPS for panel

1) Apparent density: 14kg/m³-16kg/m³;

2) Thickness: 5cm、7cm、8cm、10cm、12cm;

3) Width: 1206mm±2mm;

4) Anti-flaming type,Oxygen index≥30%.

Technical specification of 3D panel

1) Panel length(nominal size): 2400mm-4500mm ;

2) Panel width(EPS size):1206mm±2mm;

3)Panel thickness:according to EPS thickness

4)Panel type:3D panel,no edge cutting;

5)Distance between net sheet and EPS:10mm (distance of both sides from EPS to wire mesh longitudinal wire center)

6)  Abdominal wire (slanting inserted wire) adjustable angle and length:

  • Adjustable angle: 16°,could satisfy corresponding angle change caused by changes of EPS thickness
  • Abdominal wire length: 85mm―155mm;

7) Numbers of abdominal wires: two types≤100pcs∕m²;or≤200pcs∕m²

8) Abdominal wire horizontal distance: 100mm or 200mm;

9) Vertical interval:100mm;

10)Weld spot strength: ≥800 N∕spot

11) Leak welding rate of Abdominal wire and net sheet: ≤4%;

12) Vertical wire inward (close to EPS), horizontal wire outward.

Net sheet for panel

1) Galvanized steel wire for net sheet

Mechanical property: tensile strength:650-800MPa , numbers of alternating bending ≥4times∕180°

2)wire diameter:φ2.2mm-φ2.8mm;

3)Width of net-sheet: outer edge vertical wire central size:1200mm

4)Length of net-sheet: Nominal size equal to panel length;2.4m-4.5m

5)Mesh size: 50mm×50mm (from center of wire to center of wire);

6)Mesh shear location: 25mm from the center of horizontal wire at one end;

7)Welding quality of net-sheet: leak welding rate:≤8‰;welding spot strength: ≥800N/spot; Net-sheet level off, bend≤50mm;

8)Precision of welded-mesh:mesh size 50mm×50mm±0.2mm; Longitudinal center line of the wire: 1200 mm ±0.2mm; The diagonal length of 3m is not more than 3 mm;

9)Wire coil weight: 50kg±5kg;

10)Wire coil inner diameter:greater than or equal to Φ450mm;(or according to user requirement)

Advantages

Cost-effective: EPS is a lightweight and affordable material, and the panels can be produced quickly and efficiently.

Energy-saving: The EPS core provides excellent insulation, which can help to reduce heating and cooling costs.

Durable: EPS panels are resistant to moisture, mold, and pests. They can also withstand strong winds and earthquakes.

Versatile: EPS panels can be used for a variety of applications, including walls, roofs, floors, and partitions. They can also be cut and shaped to fit any design.

The overall performance of the EPS sandwich panel is good and economic, such as its quake-proof and wind resistance and properties are much better than other wall materials. Light in weight. The EPS sandwich panel reduced the base load of the beam crossing section on the frame structure, and the 3d EPS blocks increased the usable floor area of the building, in addition, the EPS sandwich wall panel decreased the total cost.

工作场景图 (1) (2)
工作场景图 (3) (2)

5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.

6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.

7. Have vacuum and air cooling system, horizontal and vertical types.

8. The machine can adjust the block mould size to get different size of the EPS block products.

Function And Application

It used to produce EPS blocks for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.

3D wire machine product (5)
3D wire machine product (5)
IMG_5164
IMG_5164
IMG_5169
IMG_5169
小图 (2)
小图 (2)
小图 (3)
小图 (3)
小图 (5)
小图 (5)
小图 (6)
小图 (6)
IMG_5187
IMG_5187
