Company Advantages

· Minglong is a global player in the eps melting machine market holding many market leading positions. .

· To assure its quality, the product is manufactured under the supervision of our experienced QA team.

· Hangzhou Minglong Technology Co.,Ltd is proficient in the performance, advantages and characteristics of various brand products.

Characteristics

1. 3D Panel Production Line refers to a manufacturing setup designed to produce 3D panels using Expanded Polystyrene (EPS) as the core material. The machine combines EPS foam with a metal wire mesh to create a strong, lightweight, and energy-efficient building material. 3D panels are innovative construction materials widely used in the building industry for their efficiency, versatility, and insulation properties.


2. 3D Panel Production Lines are equipped with automation and computer-controlled systems to improve efficiency and consistency in panel production. Additionally, these production lines can be customized to accommodate different panel sizes, shapes, and production capacities to meet the diverse needs of construction projects.

4 (31)
3 (33)

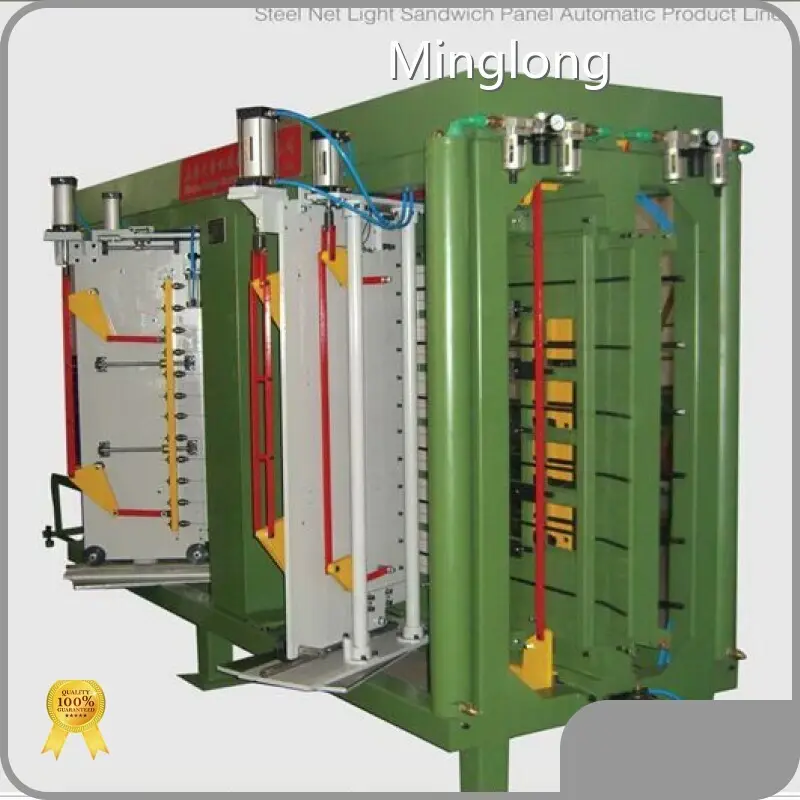

3. This production line consists of 2 parts: CH series steel net light sandwich panel inserted wire welding machine unit and 3DW-A steel net welding machine unit.

4. This production line has the advantage of high output, high welding quality, good evenness of panel, no need water to cooling the welding head, a small number of operator and etc. They are controlled by computer (PLC), so they could be operated and maintained easily. It is a mechanical-electronical integration HI-TECH production.

5. The welding machines for steel wire net-rack sandwich panel have two main types: vertical structure type and horizontal structure type.

6. Our machine have six features:

  • Vertical design:

The vertical design settle the high lack-welding rate problem of horizontal type. It makes operation and maintenance much easier.

  • Unique wire-threading mechanism:

Cut short wire in advance and insert into polystyrene panel by wire-threading mechanism. It can avoid multiple disadvantages of cutting while welding beside the machine.

  • Smart welding holder:

It makes the welding pressure more evenly and more strongly so that the solder joint can be steady.

  • Smooth and steady continuous operation:

The length of net sheet is equal to the length of polystyrene panel. So the connection of panel to panel is more convenient. The first panel can easily separate from the nest one after welded.

  • Wide choice of panel type:

The core material could be complete-panel-type rock wool, polystyrene, expanded perlite and so on. The application of rock wool and expanded perlite could rise the fireproofing level of light sandwich panel.

  • Wide choice of panel type:

There are many choice of the panel length and the thickness of the core material. Three types of panel could meet different needs of users. It also can be used as floor slab or roof boarding.

undefined

3D panel ofsteel wire net rack cement

polystyrene light sandwich panel

流程图

Technical Data

EPS for panel

1) Apparent density: 14kg/m³-16kg/m³;

2) Thickness: 5cm、7cm、8cm、10cm、12cm;

3) Width: 1206mm±2mm;

4) Anti-flaming type,Oxygen index≥30%.

Technical specification of 3D panel

1) Panel length(nominal size): 2400mm-4500mm ;

2) Panel width(EPS size):1206mm±2mm;

3)Panel thickness:according to EPS thickness

4)Panel type:3D panel,no edge cutting;

5)Distance between net sheet and EPS:10mm (distance of both sides from EPS to wire mesh longitudinal wire center)

6)  Abdominal wire (slanting inserted wire) adjustable angle and length:

  • Adjustable angle: 16°,could satisfy corresponding angle change caused by changes of EPS thickness
  • Abdominal wire length: 85mm―155mm;

7) Numbers of abdominal wires: two types≤100pcs∕m²;or≤200pcs∕m²

8) Abdominal wire horizontal distance: 100mm or 200mm;

9) Vertical interval:100mm;

10)Weld spot strength: ≥800 N∕spot

11) Leak welding rate of Abdominal wire and net sheet: ≤4%;

12) Vertical wire inward (close to EPS), horizontal wire outward.

Net sheet for panel

1) Galvanized steel wire for net sheet

Mechanical property: tensile strength:650-800MPa , numbers of alternating bending ≥4times∕180°

2)wire diameter:φ2.2mm-φ2.8mm;

3)Width of net-sheet: outer edge vertical wire central size:1200mm

4)Length of net-sheet: Nominal size equal to panel length;2.4m-4.5m

5)Mesh size: 50mm×50mm (from center of wire to center of wire);

6)Mesh shear location: 25mm from the center of horizontal wire at one end;

7)Welding quality of net-sheet: leak welding rate:≤8‰;welding spot strength: ≥800N/spot; Net-sheet level off, bend≤50mm;

8)Precision of welded-mesh:mesh size 50mm×50mm±0.2mm; Longitudinal center line of the wire: 1200 mm ±0.2mm; The diagonal length of 3m is not more than 3 mm;

9)Wire coil weight: 50kg±5kg;

10)Wire coil inner diameter:greater than or equal to Φ450mm;(or according to user requirement)

Advantages

Cost-effective: EPS is a lightweight and affordable material, and the panels can be produced quickly and efficiently.

Energy-saving: The EPS core provides excellent insulation, which can help to reduce heating and cooling costs.

Durable: EPS panels are resistant to moisture, mold, and pests. They can also withstand strong winds and earthquakes.

Versatile: EPS panels can be used for a variety of applications, including walls, roofs, floors, and partitions. They can also be cut and shaped to fit any design.

The overall performance of the EPS sandwich panel is good and economic, such as its quake-proof and wind resistance and properties are much better than other wall materials. Light in weight. The EPS sandwich panel reduced the base load of the beam crossing section on the frame structure, and the 3d EPS blocks increased the usable floor area of the building, in addition, the EPS sandwich wall panel decreased the total cost.

工作场景图 (1) (2)
工作场景图 (3) (2)

5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.

6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.

7. Have vacuum and air cooling system, horizontal and vertical types.

8. The machine can adjust the block mould size to get different size of the EPS block products.

Function And Application

It used to produce EPS blocks for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.

3D wire machine product (5)
3D wire machine product (5)
IMG_5164
IMG_5164
IMG_5169
IMG_5169
小图 (2)
小图 (2)
小图 (3)
小图 (3)
小图 (5)
小图 (5)
小图 (6)
小图 (6)
IMG_5187
IMG_5187


Company Features

· Hangzhou Minglong Technology Co.,Ltd is the largest eps melting machine mold production base in China.

· We have a highly efficient production team. They are quite familiar with the order, no matter is the product information, delivery time, clients' demand, or other specific requirements. Our company has built up professional QC teams. They have years of experience in the eps melting machine industry and are able to provide the quality guarantee insurance from the product development, raw material purchasing, and production to the final product shipping.

· Minglong believes that the principle will provide strong guarantees to better promote the advances of the company. Inquire online!


Product Details

Minglong's high-quality eps melting machine is produced according to the national standards. The specific details are as follows.


Enterprise Advantages

Minglong has experienced R&D, production and testing teams, which can meet the requirements of customers.

Minglong constantly improves the service system and creates a healthy and excellent service structure.

Our company always adheres to the business philosophy of 'quality wins the market, reputation builds the future' and promotes the enterprise spirit of 'integrity, unity and win-win'. Therefore, we continuously introduce science and technology, expand production scale, and explore new market. All that provides quality products and services for consumers.

Founded in our company has struggled for years. So far, we have accumulated rich industry experience in quality control, marketing management and brand promotion.

Our company takes its city as the product sales center, and aims to expand the sales coverage in a global way to increase its market share.
