Company Advantages
· The Minglong eps machine is manufactured by our dedicated team of experts.
· After our strict quality control, all defects of the product have been thoroughly removed.
· Customer satisfaction' is the evaluation standard of this product.
Characteristics

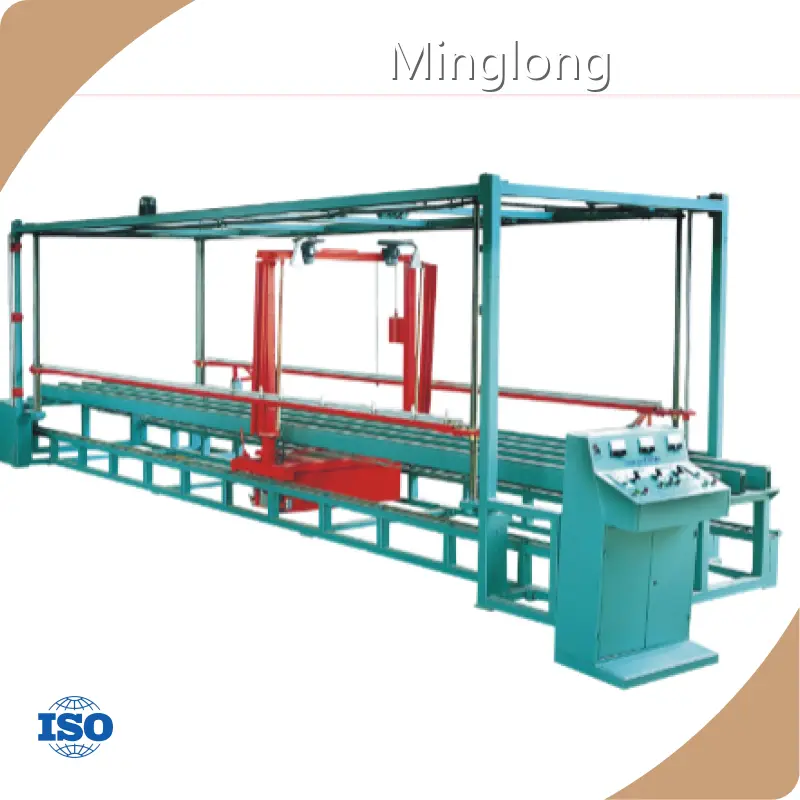

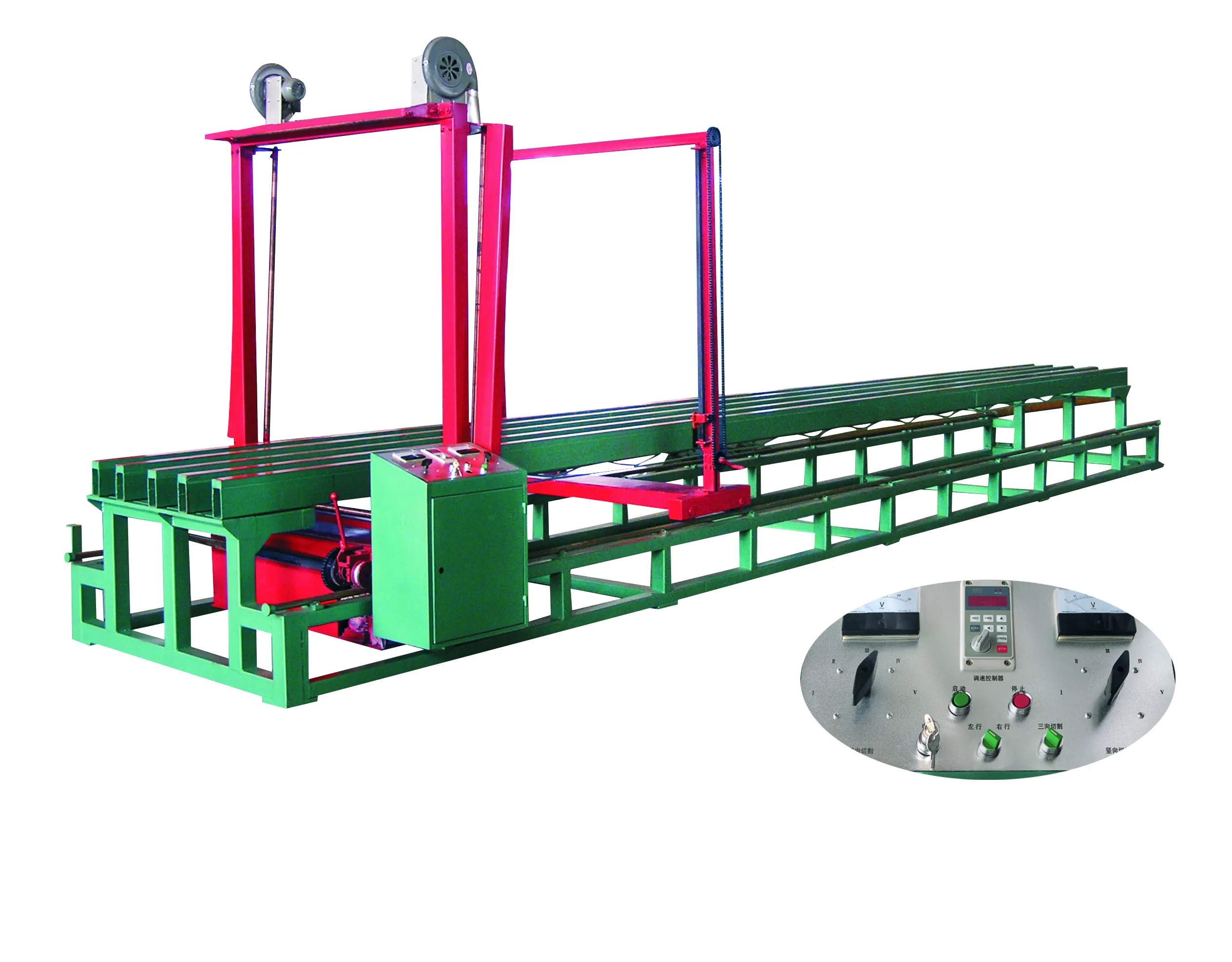

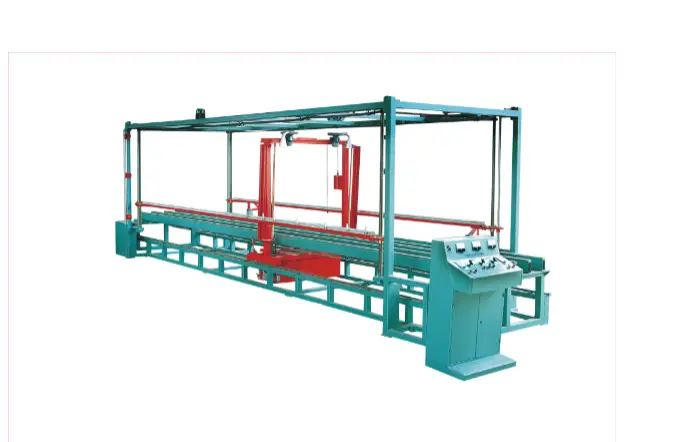

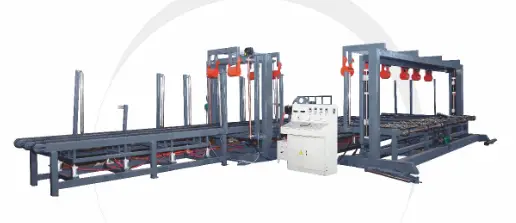

1. This machine can use for straight line cutting with three cutting direction: horizontal, portrait and vertical cutting, it can realize.
2 direction cutting at the same time which improves production efficiency. It is suitable for block cutting. It can also 2D and 3D cutting by computer design drawing for different kinds of shape forming instead of molds, which can save the cost of molds and promote efficiency.
3. This machine applies converter speed governing, which makes stable moving, and large range of step-less speed governing accordingly. Guide-rail drive makes cutting trim and flat. It applies motor-decelerator integrating system, which lowers the noise, has high practical value.
4. It applies two transformers and large power transformer, which promote the speed of cutting and lengthen service life.
5. This machine applies cutting retract device, which can shorten 3-10 mins when reposition.
6. This machine applies multi-wire cross cutting setting, which can cut the block to 3 to 5mm thin sheets.
7. There is the type of the continuous cutting machine controlled by the computer system.
Technical Data
TYPE B
ITEM | Unit | DSQ-2000B | DSQ-4000B | DSQ-6000B | |
Max Cutting Size | mm | 2000*1250*1300 | 4000*1250*1300 | 6000*1250*1300 | |
Heating Wires Amount | Horizontal | pcs | 80 | 80 | 80 |
Portrait | pcs | 30 | 30 | 30 | |
Vertical | pcs | 1 | 1 | 1 | |
Working Speed | m/min | 0~1.8 | 0~1.8 | 0~1.8 | |
Connected Load | kw | 21 | 21 | 21 | |
Overall Dimension | mm | 4800*1900*2500 | 6800*1900*2500 | 8800*1900*2500 | |
Weight | kg | 1000 | 1800 | 2200 |
TYPE C
ITEM | Unit | DSQ-3000C | DSQ-4000C | DSQ-6000C | |
Max Cutting Size | mm | 3000*1250*1250 | 4000*1250*1250 | 6000*1250*1250 | |
Heating Wires Amount | Horizontal | pcs | 60 | 60 | 60 |
Portrait | pcs | 60 | 60 | 60 | |
Vertical | pcs | 20 | 20 | 20 | |
Working Speed | m/min | 0~2 | 0~2 | 0~2 | |
Connected Load | kw | 35 | 35 | 35 | |
Overall Dimension | mm | 5800*2300*2600 | 6800*2300*2600 | 8800*2300*2600 | |
Weight | kg | 2000 | 2500 | 3000 |
Advantages
1. It has three ways cutting direction: Horizontal, portrait, vertical.
2. It can fix 100 cutting wires at same time and cut different size of the products.
3. It can cut in two direction automatically at the same with many wires for high capacity.
4. It can cut in strait line and 3D CNC cutting for all kinds of the products.
5. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
6. It can be continuous cutting and controlled by the computer system.
Function And Application
It used for cutting EPS blocks into different size and shapes for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.
Company Features
· Hangzhou Minglong Technology Co.,Ltd has widely popularity and reputation in eps machine field.
· Many famous brand companies choose our eps machine because they deeply rely on our quality. Without cutting-edge technology, Hangzhou Minglong Technology Co.,Ltd can't be such a great success in eps machine market.
· Hangzhou Minglong Technology Co.,Ltd aims to become one of the most influential high-end brand of eps machine. Inquire now!
Product Details
Minglong adheres to the principle of 'details determine success or failure' and pays great attention to the details of eps machine.
Application of the Product
The eps machine produced by Minglong is widely used in the industry.
With Internet technology, we provide a one-stop solution for practical and effective implementation of related problems encountered in the process of purchasing products.
Enterprise Advantages
Our company has a professional management team that cites advanced management concepts and methods to guide daily work activities.
Through years of hard work, our company has established a comprehensive service system to provide products and services for consumers in time.
Minglong always insists on building the brand with quality and developing the business with innovation. We comply with the enterprise spirit to be rigorous, efficient and enterprising. While attaching importance to brand building, we stick to sustainable development. Our commitment is to provide quality products and caring services wholeheartedly.
Minglong was founded in Based on the years of experience, we have become a famous production enterprise at home and abroad.
Under the constant market development and product innovation, our company has gradually established a market strategy. In this way, we focus on the sales of key products and the expansion of the domestic market, and then realize the product layout in the national region.
