Item

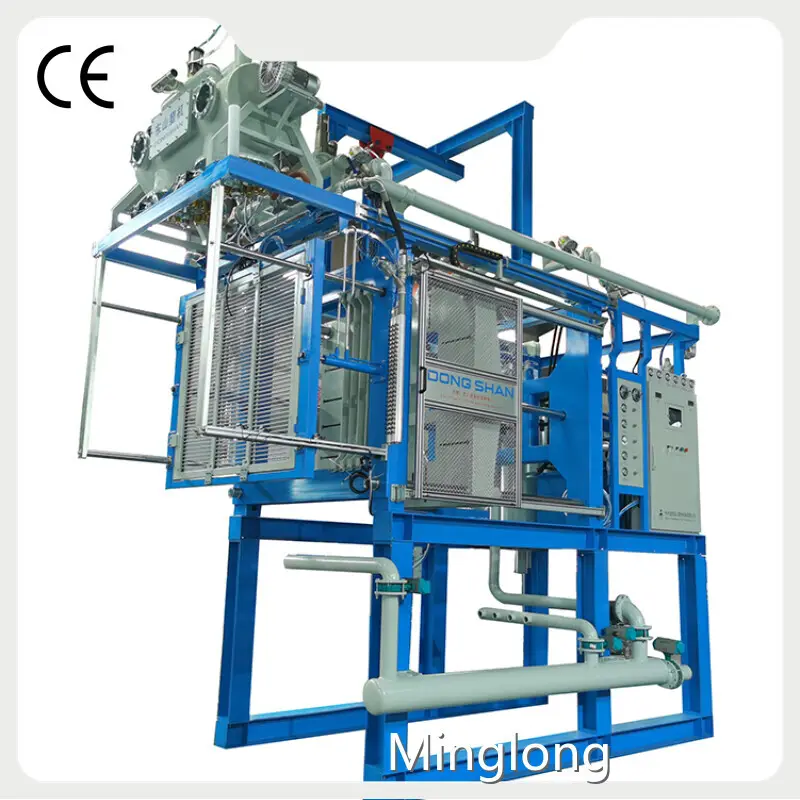

Good price Insulated Cooler Box EPS Styrofoam Making Machine
Output
2min./cycle
Dimension(L*W*H)
4700x2030x3450mm
Voltage
380v 50hz 3phase
Condition
New

Product details of the pre expander machine


Product Specification

Dimension(L*W*H): 4700x2030x3450mm

Output: 2min./cycle

Condition: New

Item: Good price Insulated Cooler Box EPS Styrofoam Making Machine

Voltage: 380v 50hz 3phase


Product Information

Minglong pre expander machine is produced in strict accordance with international production specification and standards. It is rigorously tested to ensure high durability as per quality standards. As a leading pre expander machine supplier, Hangzhou Minglong Technology Co.,Ltd ranks top in the industry.

Characteristics

1. This machine use for producing the shape forming packing products and some construction products, and it applies computer to control the whole process automatically, low voltage and high efficiency, fast forming, saving energy and big capacity.

2. It use advanced vacuum, condenser, and hydraulic system, different kind of heating, feeding and cooling. It can install the small and big mold.

3.There are four kinds of operating mode (Automatic, Semi-automatic, Middle-startup and Manual operation)with safe-guard protective device to ensure safe operation. Perfect failure self-diagnosing and overloading protection system, which keep machine safe and steady working.

4..Most of the main components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.

5. This machine can choose mechanical ejection mold mode or hydraulic ejection mold mode.

6. This machine has the fast installing mold system.

4 (27)

Technical Data

ITEM Unit FAV1400 FAV1750 FAV2000
Mould Dimension mm 1400*1250 1750*1450 2000*1650
Max product mm 1250*1100*420 1600*1300*420 1850*1500*420
Stroke mm 150~1500 150~1500 150~1500
Steam Entry mm 89/108 108 125
Consumption kg/cycle 6~9 6~11 8~13
Pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7
Cooling water Entry mm 89/108 108 125
Consumption kg/cycle 30~90 35~100 40~130
Pressure Mpa 0.4~0.6 0.4~0.6 0.4~0.6
Compressed Air Entry mm 50/76 76 76/89
Consumption m3/cycle 1.8 2 2.5
Pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7
Vaccum Pump Capacity m3/h 230 290 290
Cycle Time s 60-120 60-120 70-140
Connected Load/Power kw 12.5 16.5 16.5
Overall Dimension mm 5700*1920*3250 5700*2030*3450 5700*2240*3680
Machine Weight kg 6500 7500 9500

Advantages

1. Fully automatic working by computer control system with PLC and color touch screen.

2.Fast working process and short cycle time, Saving energy and high efficiency working capacity.

3. Germany and Japan proportional valves, meters, sensors, reduce valve, Europe pipe system and Schneider electronics to control steady steam and air pressure for steady working and making high quality products.

工作场景 (2) (3)
eps shape machine factory

4. The machine has fast installing mold and auto locking mold system, and with foundation legs and electric crane, feeding oil system, single vacuum and condenser system.

5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.

6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.

Detail Of Key Parts

d4c1464df005a8547e6d8305645e1a4
d4c1464df005a8547e6d8305645e1a4
IMG_20231230_153348
IMG_20231230_153348
bada1e523104aae3972b37395c467a0
bada1e523104aae3972b37395c467a0
66daa5780749a74d4205461f696094f
66daa5780749a74d4205461f696094f
IMG_20170630_123430
IMG_20170630_123430
d4c1464df005a8547e6d8305645e1a4
d4c1464df005a8547e6d8305645e1a4

Function And Application

It used for running EPS molds to produce all kinds of packaging and insulation products such as seafood/fruit/vegetable/ice boxes, packing products, tools, decoration, cold storage, ICF constructions, cars and Appliances inner parts and so on.
