Pre Expander Machine by Minglong
Product details of the pre expander machine
Product Information
Minglong pre expander machine is manufactured from selected materials using modern assembly line. The product is manufactured to the highest quality, exceeding the standards of the industry. Hangzhou Minglong Technology Co.,Ltd can ensure the fastest and most accurate delivery date for pre expander machine.
Characteristics
Adjustable Thermocol Insulation Sheets Machine
Control System
PLC and human-touch Control, electrical controller and computer control system are available.
Structure Design
High quality square tube and steel plate are used for the machine’s structure in perfect strength without deformation.
Hydraulic station control the signal door, model’s stripping, and locking device.
Spare parts and fittings are high quality products of well-known brand which keep the machine in a long service life.
Processes
Automatic pneumatic feeding and fan feeding methods
Heat treatment, material feeding
Production Efficiency
Fast cooling speed and low cost.
High production efficiency: a light board only takes 2-3min.
Products with low moisture content and stable size
Energy saving
Technical Data
| ITEM | Unit | SPB2000V | SPB3000V | SPB4000V | SPB6000V | |
| Mould Size | mm | 2050*1240*630 | 3080*1240*630 | 4080*1240*1030 | 6080*1240*1030 | |
| Block Size | mm | 2000*1000*500 | 3000*1200*600 | 4000*1200*1000 | 6000*1200*1000 | |
| Steam | Consumption | kg | 18～25 | 55～65 | 60～85 | 95～120 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Compressed air | Consumption | M3 | 1～1.2 | 2～2.2 | 1.8～2.5 | 2～3 |
| Pressure | Mpa | 0.6～0.8 | ||||
| Vacuum cooling water | Entry | mm | DN40 | DN40 | DN40 | DN40 |
| Consumption | m3/cycle | 0.4 | 0.6 | 0.8 | 1 | |
| Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2～0.4 | 0.2～0.4 | |
| Drainage | Vacuum drain | mm | DN100 | DN125 | DN125 | DN150 |
| Down drain | mm | DN10 | DN150 | DN150 | DN150 | |
| Fan drain vent | mm | DN100 | DN150 | DN150 | DN150 | |
| Capacity @15kg/m3 | min/cycle | 10 | 15 | 7 | 8 | |
| Connected Power | KW | 7 | 9.5 | 24.5 | 32.25 | |
Advantages
1. High Quality EPS Foam Block Moulding Machine Fully automatic working by computer control system with PLC and color touch screen.
2. Fastest working process and shortest cycle time, Saving energy and biggest capacity.
3. Germany technology and pipe control system, it can make the lowest and highest density from 4g/l to 50g/l block, the best quality and most popular block machine.
4. It can adjust the block size, with bigger feeding system and safety lock control system.
5. The machine made by more thickness steel plates, bigger pipes &valves and stronger machine structure for high efficient working capacity and long working life.
6. Excellent machine design with easy installation,operation and maintenance, good welding and painting, beautiful appearance of the complete machine.
7. Have vacuum and air cooling system, horizontal and vertical types.
8. The machine can adjust the block mould size to get different size of the EPS block products.

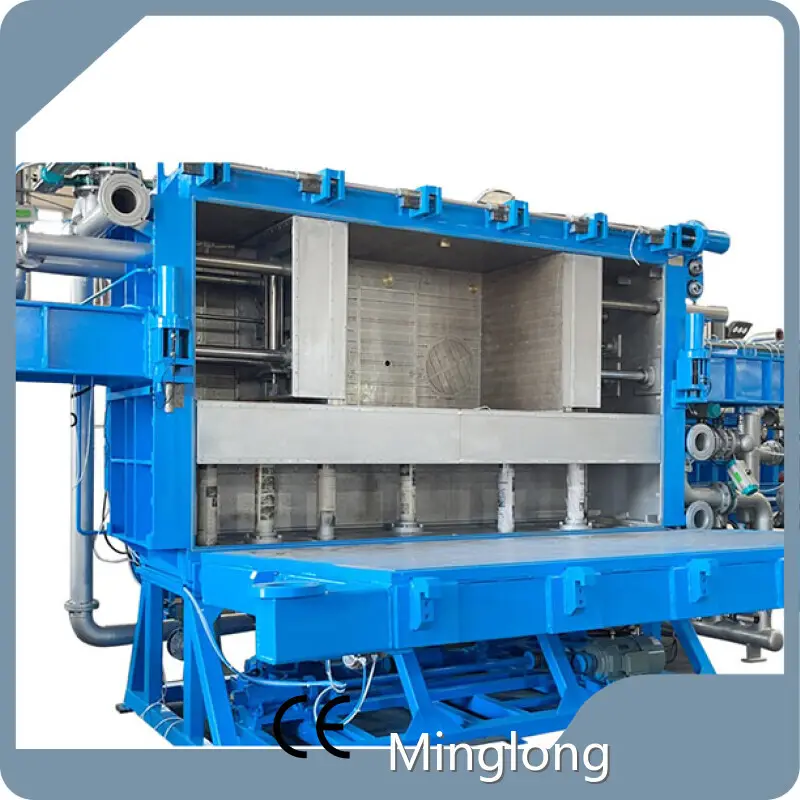

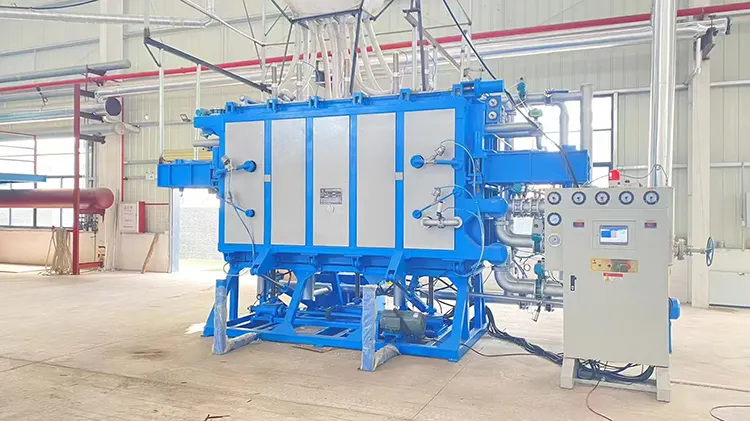

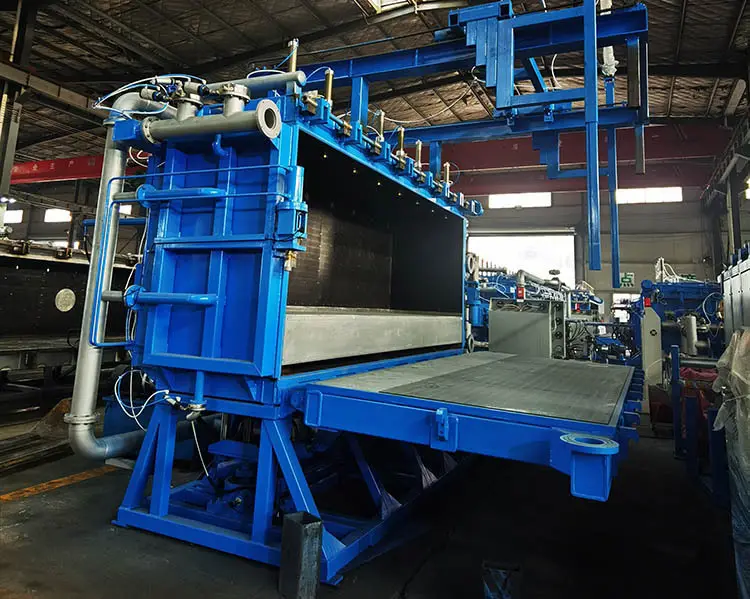

Detail Of Key Parts
Function And Application

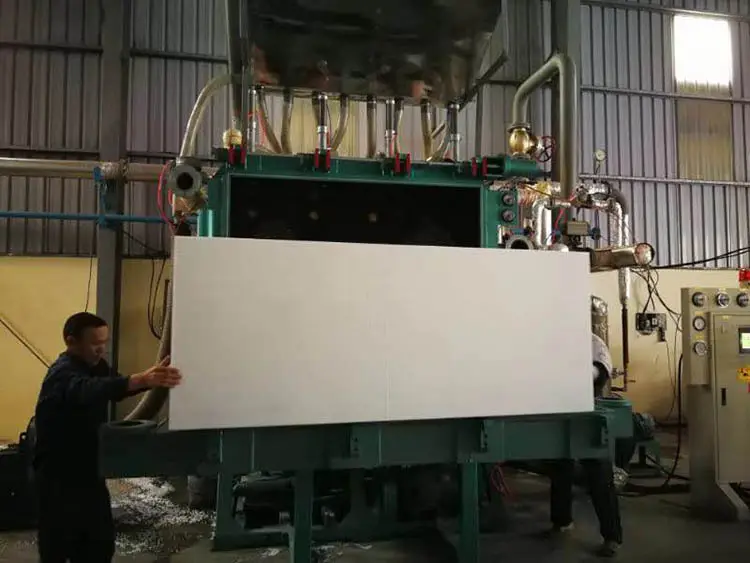

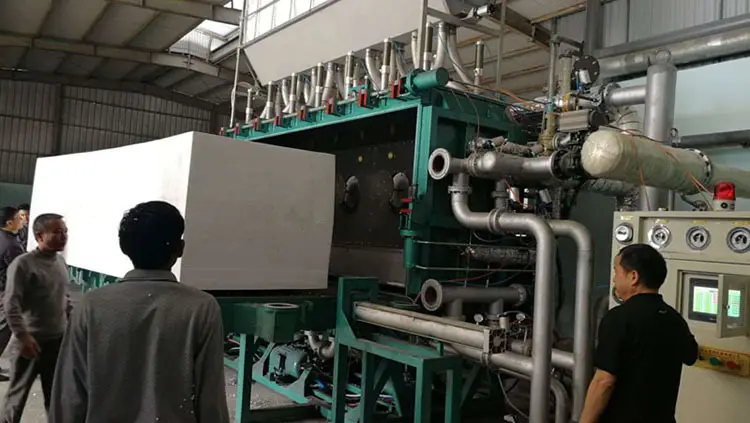

It used to produce EPS blocks for building construction, packing products and other insulation products such as EPS sandwich panel of wall and roof, packing furniture/glasses, tools, CNC cutting products, decoration, cold storage house and so on.
Company Advantage
• Adhering to the service concept to be customer-oriented, Minglong wholeheartedly provides customers with high-quality products and professional services.
• We sell our products well in the domestic market and also export to foreign market. And our products have won the unanimous praises and recognition of domestic and foreign customers.
• Minglong has grown into a modern enterprise with great social influence after years.
If you are interested in Minglong's EPS machine, EPP machine and want to reach a long-term partnership with us, please leave your contact information. We will communicate with you about related matters.
